Product Description
Part Number: M12SFW10PL
Diameter: M12
Grade: Class 10
Finish: Plain
Inside Diameter : 13.27MM
Outside Diameter: 24MM
Thickness : 2.5MM
BoltsandNuts.com

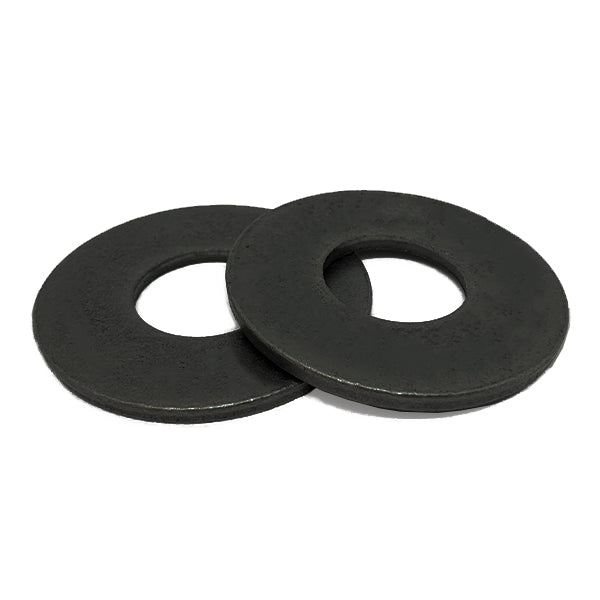

M12 Class 10 Hardened Flat Washers Plain
Product Description
Part Number: M12SFW10PL
Diameter: M12
Grade: Class 10
Finish: Plain
Inside Diameter : 13.27MM
Outside Diameter: 24MM
Thickness : 2.5MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.15/pc
Popular
50
$0.12/pc
100
$0.0987/pc
250
$0.079/pc
Best Value
2800
$0.0592/pc
$0.15
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Grade | Low Carbon |
| Specifications Met | ISO 7089 / DIN 125A |
| Thickness | 2.5 mm |
| System | Metric |
| Material | Low carbon steel |
| Pattern | DIN 125A / ISO 7089 |
| Outside Diameter | 24 mm |
| Finish | Plain |
| Diameter | M12 |
| Inside Diameter | 13 mm |
Technical Drawing
Not to scale · ISO 7089 / DIN 125A · See table for exact dimensions
Technical Dimensions
| Outside Diameter | 24 mm |
| Inside Diameter | 13 mm |
| Thickness | 2.5 mm |
| Fits Bolt Size | M12 |
| Series | DIN 125A / ISO 7089 |
| Material | Low carbon steel |
Hardened flat washer that spreads bearing load and resists dishing under high-strength bolts. Place it under the part being turned.
Dimensions conform to ISO 7089 / DIN 125A and may vary within specified manufacturing tolerances.
