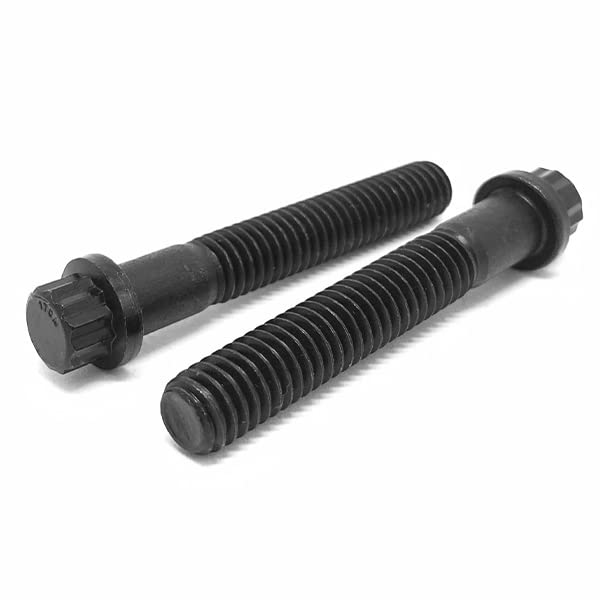

M12-1.75x90 Metric 12 Point Flange Screws Class 12.9 Black Oxide

Product Description

Part Number: M12C90BFL12PL
Diameter/Pitch: M12-1.75
Grade: Class 12.9 Alloy
Length Under Head: 90MM
Finish: Black Oxide
Thread Series: Metric coarse
Threading: Partially threaded
Wrench Size: 12MM

BoltsandNuts.com

M12-1.75x90 Metric 12 Point Flange Screws Class 12.9 Black Oxide

SKU: M12C90BFL12PL

Product Description

Part Number: M12C90BFL12PL
Diameter/Pitch: M12-1.75
Grade: Class 12.9 Alloy
Length Under Head: 90MM
Finish: Black Oxide
Thread Series: Metric coarse
Threading: Partially threaded
Wrench Size: 12MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$11.36/pc

Popular

6

$8.52/pc

12

$7.24/pc

30

$5.79/pc

Best Value

195

$4.34/pc

$11.36

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Thread Size	M12-1.75
Material	Alloy steel, quenched and tempered
Wrench Size	12MM
Thread Length	30 mm ref
Tensile Strength (min)	1,220 MPa (176,946 psi)
Specifications Met	ISO 898-1 Class 12.9

Length	90 mm
Finish	Black Oxide
Thread Series	Metric coarse
Head Marking	"12.9" on head
Proof Load (min)	81.7 kN (18,376 lbf)

Grade	Class 12.9
Head Type	12-Point Flange
Threading	Partially threaded
Thread Class	6g
Hardness	39–44 HRC

Technical Drawing

Not to scale · manufacturer specification · See table for exact dimensions

Technical Dimensions

Length	90 mm
Thread Size	M12-1.75
12-Point Wrench Size	12MM
Major Diameter	12 mm
Thread Class	6g
Material	Alloy steel, quenched and tempered

Twelve-point head with an integral bearing flange. The 12-point head takes a 12-point socket or box wrench in a smaller swing than a hex head of the same strength, and the flange spreads clamp load like a built-in washer. Partially threaded shank, plain under the head, with ISO metric coarse threads.

Dimensions conform to manufacturer specification and may vary within specified manufacturing tolerances.
