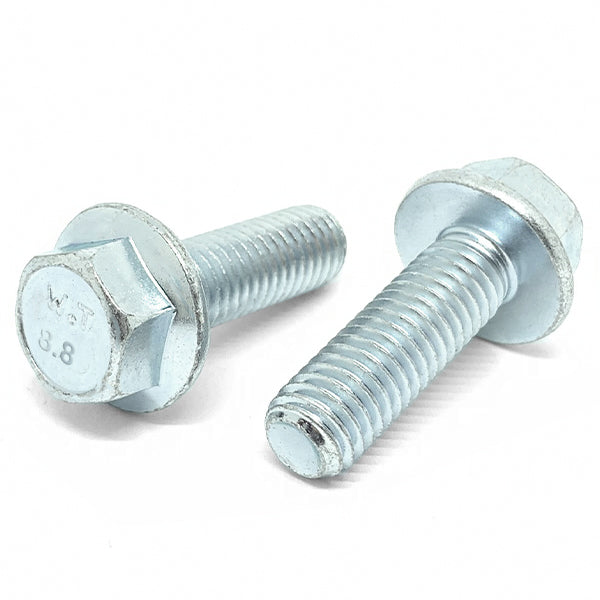

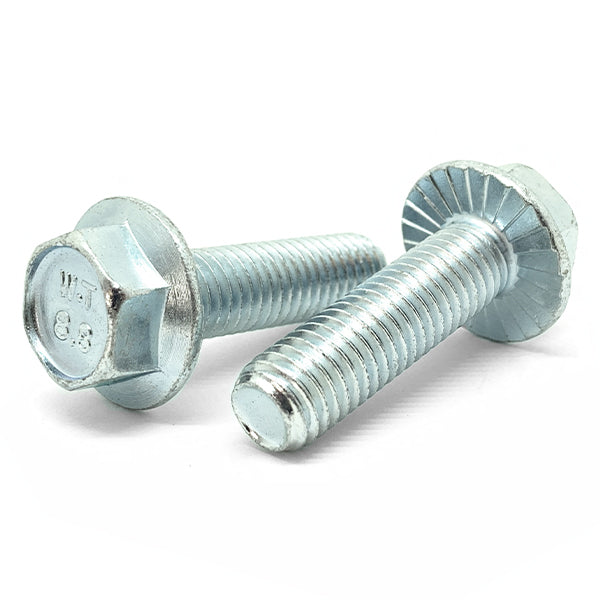

M12-1.75x30 Class 8.8 Hex Serrated Flange Bolts Zinc Clear

Product Description

Part Number: M12C30SFS88Z
Diameter/Pitch: M12-1.75
Length Under Head: 30MM
Grade: Class 8.8
Finish: Zinc Clear
Coarse/Fine Threads: Coarse
Partial/Full Threads: Full
Wrench Size: 16MM

BoltsandNuts.com

M12-1.75x30 Class 8.8 Hex Serrated Flange Bolts Zinc Clear

SKU: M12C30SFS88Z

Product Description

Part Number: M12C30SFS88Z
Diameter/Pitch: M12-1.75
Length Under Head: 30MM
Grade: Class 8.8
Finish: Zinc Clear
Coarse/Fine Threads: Coarse
Partial/Full Threads: Full
Wrench Size: 16MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.61/pc

Popular

15

$1.20/pc

30

$1.02/pc

75

$0.81/pc

Best Value

400

$0.61/pc

$1.61

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M12-1.75
Finish	Zinc Clear
Width Across Flats	18 mm
Major Diameter	12 mm
Tensile Strength	800 MPa (116,030 psi)
Tensile Stress Area	84.3 sq mm
Torque Dry	88 Nm (65 ft-lb)
Thread Length	Fully threaded

Length Under Head	30 mm
Partial Full Threads	Full
Width Across Corners	20.8 mm max
Proof Load	48.9 kN (10,987 lbf)
Yield Strength	640 MPa
Hardness	22–32 HRC
Torque Lubricated	66 Nm (49 ft-lb)
Inch Metric	Metric

Grade	Class 8.8
Thread Class	6g
Head Height	7.5 mm nom
Clamp Load	36.7 kN
Proof Stress	580 MPa
Head Marking	"8.8" on head
Head Type	Hex Flange (Serrated)
Diameter Pitch 1	M12-1.75
