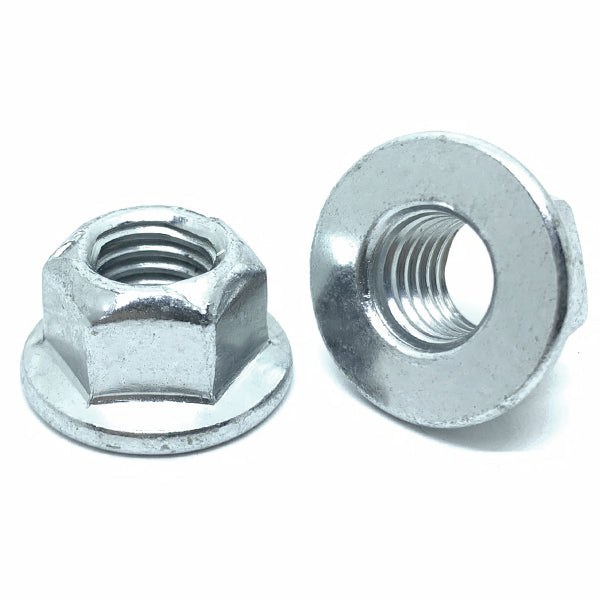

M12-1.75 Class 10 Hex Flange Prevailing Torque Top Lock Nuts Zinc Clear

Product Description

Part Number: M12CFLN10Z
Diameter/Pitch: M12-1.75
Grade: Class 10
Finish: Zinc Clear
Thread Series: Metric coarse
Wrench Size: 18MM

BoltsandNuts.com

M12-1.75 Class 10 Hex Flange Prevailing Torque Top Lock Nuts Zinc Clear

SKU: M12CFLN10Z

Product Description

Part Number: M12CFLN10Z
Diameter/Pitch: M12-1.75
Grade: Class 10
Finish: Zinc Clear
Thread Series: Metric coarse
Wrench Size: 18MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.17/pc

Popular

25

$0.88/pc

50

$0.75/pc

125

$0.60/pc

Best Value

800

$0.45/pc

$1.17

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Thread Size	M12-1.75
Finish	Zinc Clear
Thread Series	Metric coarse
Height	10.8 mm nom

Grade	Class 10
Head Type	Hex Flange
Thread Class	6H
Locking Type	All-metal prevailing torque (distorted thread)

Material	Carbon steel, heat treated
Wrench Size	18MM
Specifications Met	ISO 898-2 Class 10
Max Temperature	Rated to 230°C (all-metal)

Technical Drawing

Not to scale · ISO 7044 / DIN 6927 · See table for exact dimensions

Technical Dimensions

Wrench Size	18MM
Thread Size	M12-1.75
Thread Class	6H
Locking Type	All-metal prevailing torque (distorted thread)
Max Temperature	Rated to 230°C (all-metal)
Material	Carbon steel, heat treated

All-metal prevailing torque nut with a distorted top thread that grips the bolt, resisting vibration loosening without a nylon insert. Suitable for elevated temperatures where nylon would fail. The integral flange spreads load like a built-in washer.

Dimensions conform to ISO 7044 / DIN 6927 and may vary within specified manufacturing tolerances.
