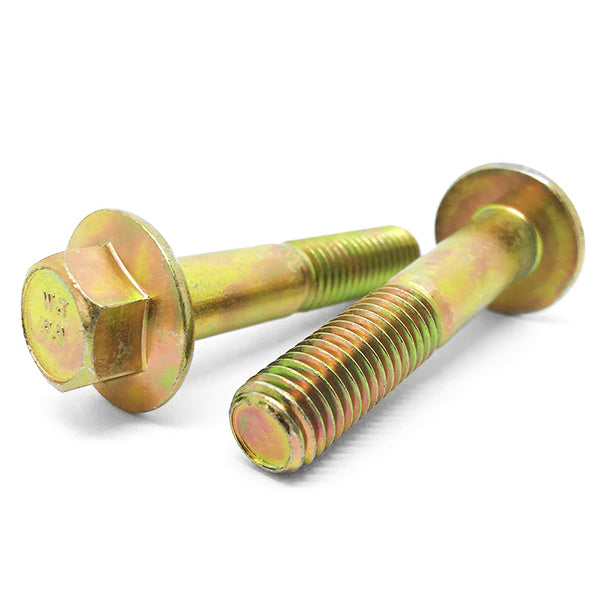

M10-1.5x70 Class 8.8 Hex Flange Bolts Zinc Yellow

Product Description

Part Number: M10C70BF88Y/D
Diameter/Pitch: M10-1.5
Grade: Class 8.8
Length Under Head: 70MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 15MM

BoltsandNuts.com

M10-1.5x70 Class 8.8 Hex Flange Bolts Zinc Yellow

SKU: M10C70BF88Y/D

Product Description

Part Number: M10C70BF88Y/D
Diameter/Pitch: M10-1.5
Grade: Class 8.8
Length Under Head: 70MM
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 15MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$2.71/pc

Popular

15

$2.03/pc

30

$1.72/pc

75

$1.38/pc

Best Value

300

$1.03/pc

$2.71

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M10-1.5
Grade Material	Class 8.8
Thread Class	6g
Head Height	6.4 mm nom
Clamp Load	25.2 kN
Proof Stress	580 MPa
Head Marking	"8.8" on head
Head Type	Hex Flange (Frame Bolt)

Length Under Head	70 mm
Finish	Zinc Yellow
Width Across Flats	16 mm
Major Diameter	10 mm
Tensile Strength	800 MPa (116,030 psi)
Tensile Stress Area	58.0 sq mm
Torque Dry	50 Nm (37 ft-lb)
Thread Length	Fully threaded

Grade	Class 8.8
Partial Full Threads	Partial
Width Across Corners	18.5 mm max
Proof Load	33.6 kN (7,561 lbf)
Yield Strength	640 MPa
Hardness	22–32 HRC
Torque Lubricated	38 Nm (28 ft-lb)
Inch Metric	Metric
