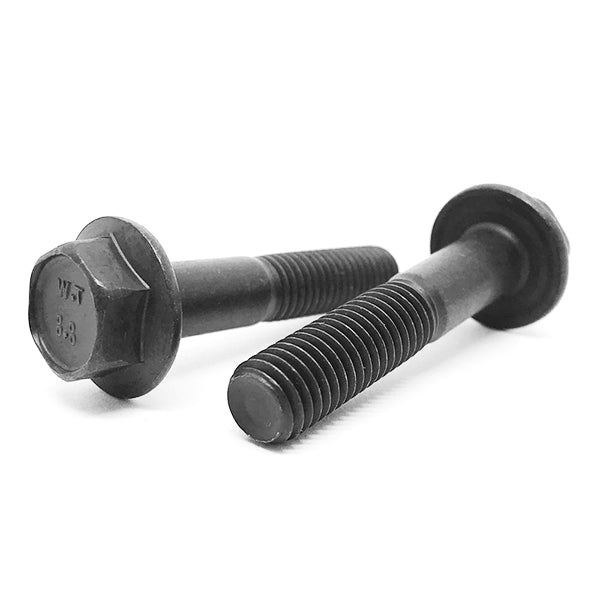

M10-1.5x60 Class 8.8 Hex Flange Bolts Plain & Oil

Product Description

Part Number: M10C60BF88PL/D
Diameter/Pitch: M10-1.5
Grade: Class 8.8
Length Under Head: 60MM
Finish: Plain & Oil
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 15MM

BoltsandNuts.com

M10-1.5x60 Class 8.8 Hex Flange Bolts Plain & Oil

SKU: M10C60BF88PL/D

Product Description

Part Number: M10C60BF88PL/D
Diameter/Pitch: M10-1.5
Grade: Class 8.8
Length Under Head: 60MM
Finish: Plain & Oil
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 15MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.55/pc

Popular

10

$1.16/pc

20

$0.99/pc

50

$0.79/pc

Best Value

300

$0.59/pc

$1.55

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M10-1.5
Grade Material	Class 8.8
Partial Full Threads	Partial
Wrench Size	15MM
Head Height	6.4 mm nom
Clamp Load	25.2 kN
Proof Stress	580 MPa
Head Marking	"8.8" on head
Length	60 mm
Thread Length	Fully threaded

Length Under Head	60 mm
Finish	Plain
Coarse Fine Threads	Coarse
Width Across Flats	16 mm
Major Diameter	10 mm
Tensile Strength	800 MPa (116,030 psi)
Tensile Stress Area	58.0 sq mm
Torque Dry	50 Nm (37 ft-lb)
Head Type	Hex Flange (Frame Bolt)
Inch Metric	Metric

Grade	Class 8.8
Material	Medium carbon steel, quenched and tempered
Thread Class	6g
Width Across Corners	18.5 mm max
Proof Load	33.6 kN (7,561 lbf)
Yield Strength	640 MPa
Hardness	22–32 HRC
Torque Lubricated	38 Nm (28 ft-lb)
Nominal Size	M10
