Product Description
Part Number: M10C50BCG46Z
Diameter/Pitch: M10-1.5
Length Under Head: 50MM
Grade: Class 4.6
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Square Width (Max): 10.58 MM
BoltsandNuts.com

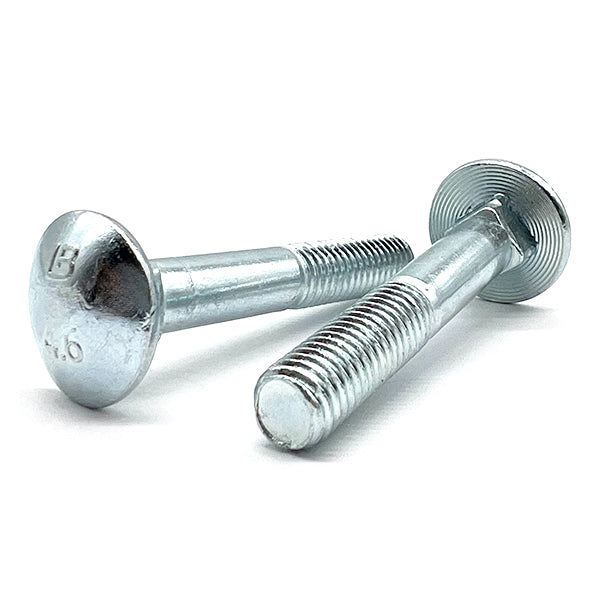

M10-1.5x50 Class 4.6 Round Head Carriage Bolts Zinc
Product Description
Part Number: M10C50BCG46Z
Diameter/Pitch: M10-1.5
Length Under Head: 50MM
Grade: Class 4.6
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Square Width (Max): 10.58 MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$1.72/pc
Popular
10
$1.28/pc
20
$1.09/pc
50
$0.87/pc
Best Value
250
$0.65/pc
$1.72
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | M10-1.5 |
| Grade Material | Class 4.6 |
| Partial Full Threads | Partial |
| Proof Load | 13.0 kN |
| Proof Stress | 225 MPa |
| Head Type | Round Head, Square Neck |
| Length Under Head | 50 mm |
| Finish | Zinc Clear |
| Thread Class | 6g |
| Tensile Strength | 400 MPa (58,015 psi) |
| Tensile Stress Area | 58.0 sq mm |
| Inch Metric | Metric |
| Grade | Class 4.6 |
| Material | Low carbon steel |
| Major Diameter | 10 mm |
| Yield Strength | 240 MPa |
| Head Marking | "4.6" marking |
