Product Description
Part Number: M10C25BF10P/D
Diameter/Pitch: M10-1.5
Length Under Head: 25MM
Grade: Class 10.9
Finish: Phos & Oil
Thread Series: Metric coarse
Threading: Fully threaded
Wrench Size: 15MM
BoltsandNuts.com

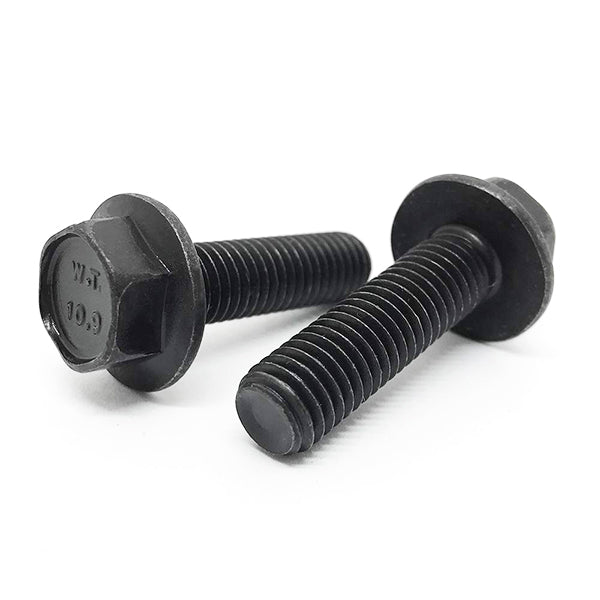

M10-1.5x25 Class 10.9 Hex Flange Bolts Phos & Oil
Product Description
Part Number: M10C25BF10P/D
Diameter/Pitch: M10-1.5
Length Under Head: 25MM
Grade: Class 10.9
Finish: Phos & Oil
Thread Series: Metric coarse
Threading: Fully threaded
Wrench Size: 15MM
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$1.14/pc
Popular
50
$0.85/pc
100
$0.72/pc
250
$0.58/pc
Best Value
600
$0.43/pc
$1.14
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Thread Size | M10-1.5 |
| Material | Medium carbon alloy steel, quenched and tempered |
| Wrench Size | 15MM |
| Head Marking | "10.9" on head |
| Proof Load (min) | 48.1 kN (10,820 lbf) |
| Length | 25 mm |
| Finish | Phosphate & Oil |
| Thread Series | Metric coarse |
| Thread Class | 6g |
| Hardness | 32–39 HRC |
| Grade | Class 10.9 |
| Head Type | Hex Flange (Frame Bolt) |
| Threading | Fully threaded |
| Tensile Strength (min) | 1,040 MPa (150,840 psi) |
| Specifications Met | ISO 4162 / DIN 6921, ISO 898-1 Class 10.9 |
Technical Drawing
Not to scale · ISO 4162 / DIN 6921 · See table for exact dimensions
Technical Dimensions
| Length Under Flange | 25 mm |
| Major Thread Dia. | 10 mm |
| Thread Class | 6g |
| Proof Load | 48.1 kN (10,820 lbf) |
| Min. Tensile Strength | 1,040 MPa (150,840 psi) |
| Yield Strength | 940 MPa |
| Hardness | 32–39 HRC |
| Material | Medium carbon alloy steel, quenched and tempered |
Hex head with an integral washer-style flange that spreads clamp load over a wider area, often removing the need for a separate washer. Fully threaded shank, with ISO metric coarse threads.
Dimensions conform to ISO 4162 / DIN 6921 and may vary within specified manufacturing tolerances.
