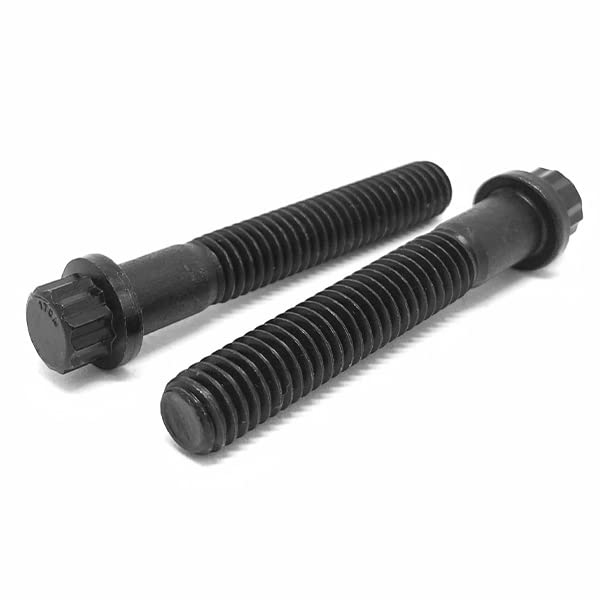

M10-1.50x50 Metric 12 Point Flange Screws Class 12.9 Black Oxide

Product Description

Part Number: M10C50BFL12PL
Diameter/Pitch: M10-1.5
Grade: Class 12.9 Alloy
Length Under Head: 50MM
Finish: Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 10MM

BoltsandNuts.com

M10-1.50x50 Metric 12 Point Flange Screws Class 12.9 Black Oxide

SKU: M10C50BFL12PL

Product Description

Part Number: M10C50BFL12PL
Diameter/Pitch: M10-1.5
Grade: Class 12.9 Alloy
Length Under Head: 50MM
Finish: Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 10MM

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$5.47/pc

Popular

14

$4.10/pc

28

$3.48/pc

70

$2.79/pc

Best Value

445

$2.09/pc

$5.47

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	M10-1.5
Grade Material	Class 12.9 Alloy
Thread Class	6g
Head Height	6.4 mm nom
Clamp Load	42.2 kN
Proof Stress	970 MPa
Head Marking	"12.9" on head
Head Type	Hex Flange (Frame Bolt)

Length Under Head	50 mm
Finish	Black Oxide
Width Across Flats	16 mm
Major Diameter	10 mm
Tensile Strength	1,220 MPa (176,946 psi)
Tensile Stress Area	58.0 sq mm
Torque Dry	84 Nm (62 ft-lb)
Thread Length	Fully threaded

Grade	Class 12.9
Partial Full Threads	Partial
Width Across Corners	18.5 mm max
Proof Load	56.2 kN (12,645 lbf)
Yield Strength	1,100 MPa
Hardness	39–44 HRC
Torque Lubricated	63 Nm (47 ft-lb)
Inch Metric	Metric
