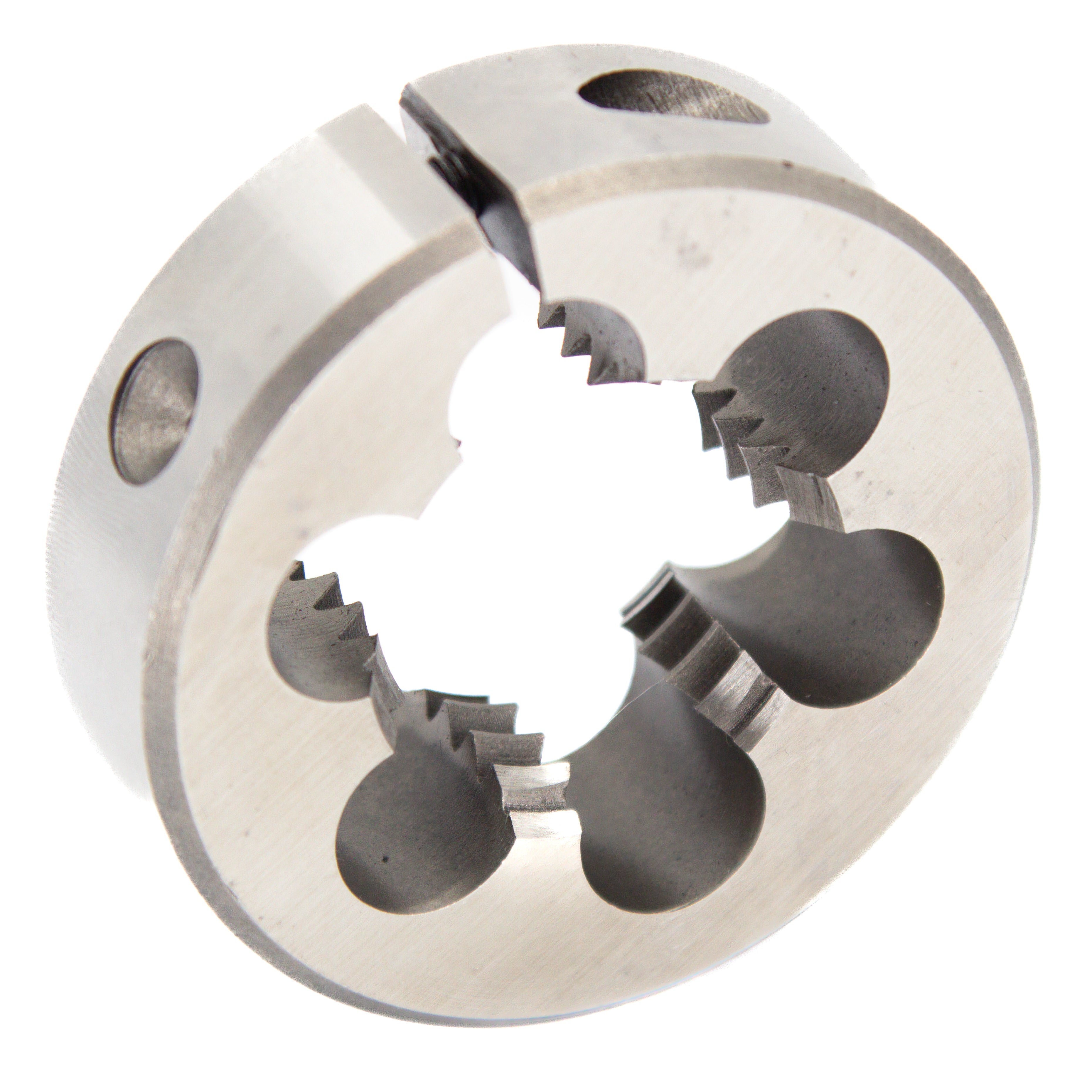

m20 X 1.5 1-1/2" OD HSS Round Die
m20 X 1.5 1-1/2" OD HSS Round Die
m20 X 1.5 1-1/2" OD HSS Round Die
m20 X 1.5 1-1/2" OD HSS Round Die
m20 X 1.5 1-1/2" OD HSS Round Die
Product Description

Product Description

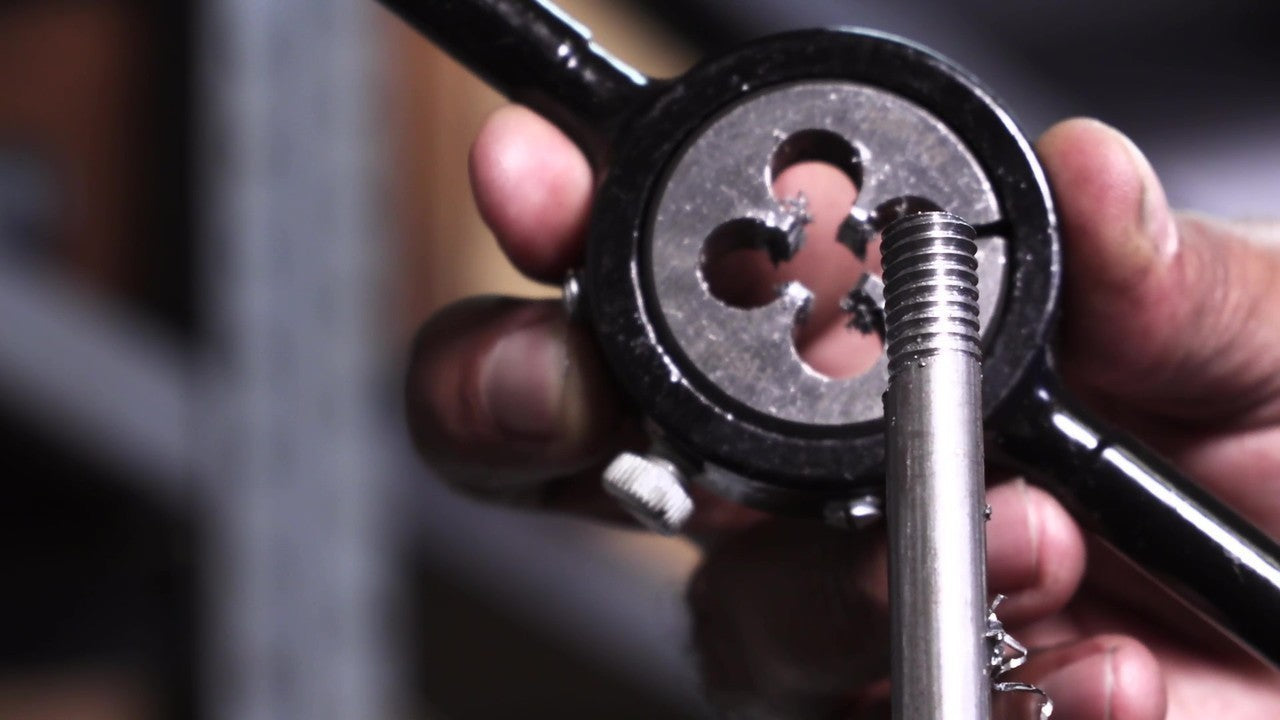

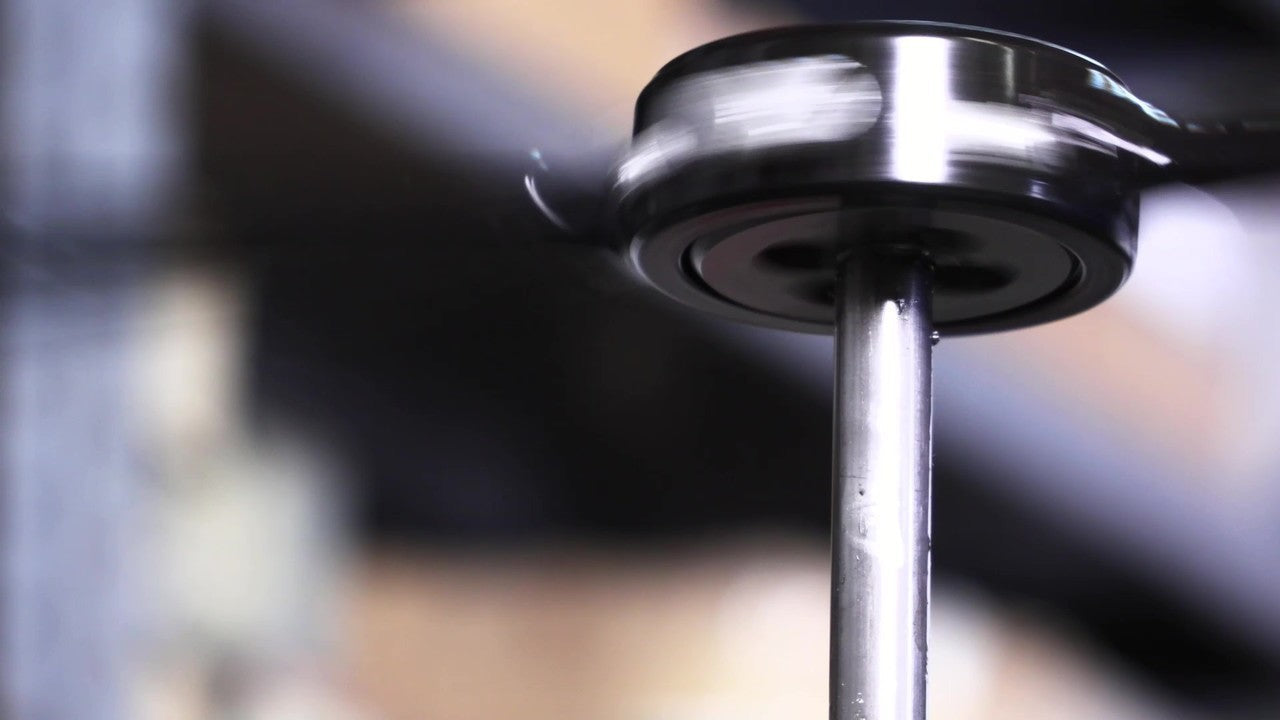

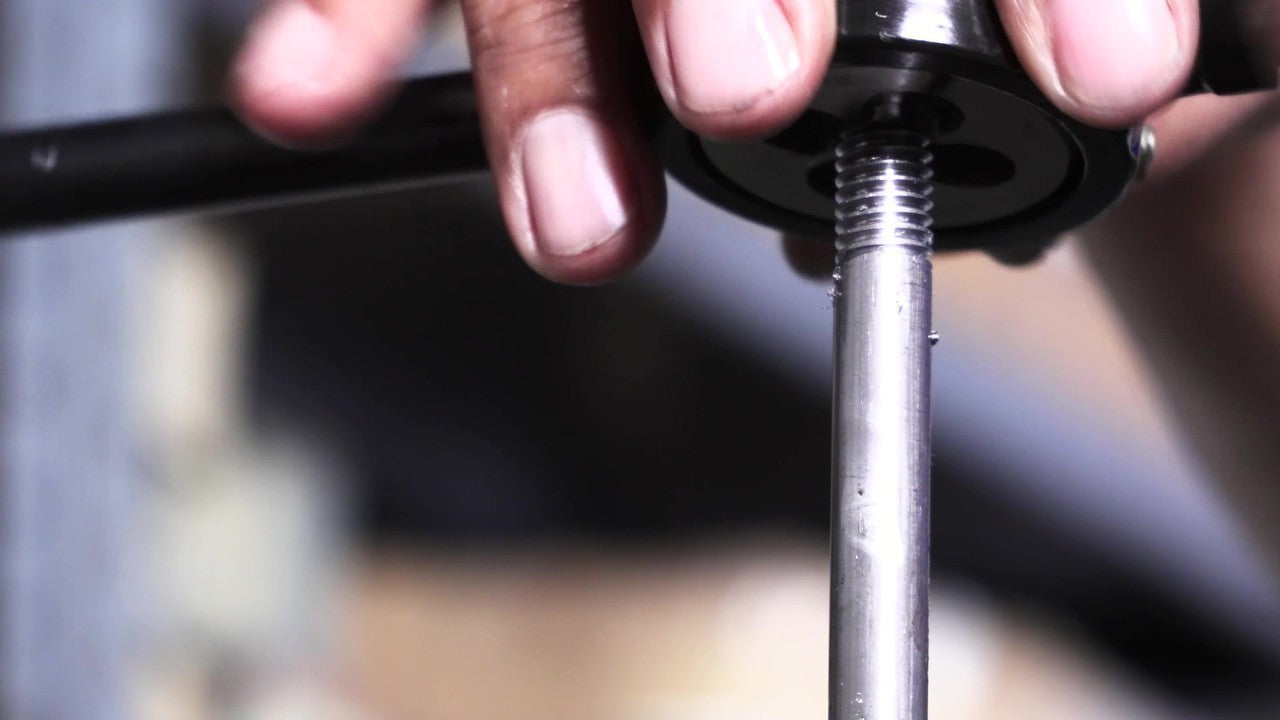

HSS Round Dies are for use in making new threads or re-threading existing threads. They are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. Round dies are chamfered on both faces, one side has a 2 to 3 thread chamfer for threading and the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustments are made by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder.

Brand Drill America
Part Number DWTMR112-20X1.5
Size m20 X 1.5
Material High Speed Steel
Finish Uncoated (Bright)
Size m20
Outer Diameter 1-1/2"
Corresponding Die Stock 1-1/2"
Shape Round



BoltsandNuts.com

m20 X 1.5 1-1/2" OD HSS Round Die

SKU: BIT-DWTMR112-20X1.5
Product Description

Product Description
HSS Round Dies are for use in making new threads or re-threading existing threads. They are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance. Round dies are chamfered on both faces, one side has a 2 to 3 thread chamfer for threading and the other side has a 1 to 1-1/2 thread chamfer for threading close to a shoulder. Adjustments are made by a fine pitch screw which forces the sides of the die apart, or allows them to spring together. The slot is beveled so that when the dies are used in a machine holder the adjusting screw can be removed and adjustment made by the adjusting screws in the holder.

Brand Drill America
Part Number DWTMR112-20X1.5
Size m20 X 1.5
Material High Speed Steel
Finish Uncoated (Bright)
Size m20
Outer Diameter 1-1/2"
Corresponding Die Stock 1-1/2"
Shape Round



Pack Size
1
$33.74/pc
$33.74
(Shipping $8.95) Add [amount] more for FREE SHIPPING
Free QR Storage Label Included with Most Items
Scan the QR and it will lead to that exact item for easy reordering!
30 Day Returns
Accepted on Most Items. Learn More
FinishUncoated (Bright)
Length["6"]
Inch MetricInch
MaterialHigh Speed Steel
Width["4"]
Size["M20"]
Nominal Size1/2"
