Product Description

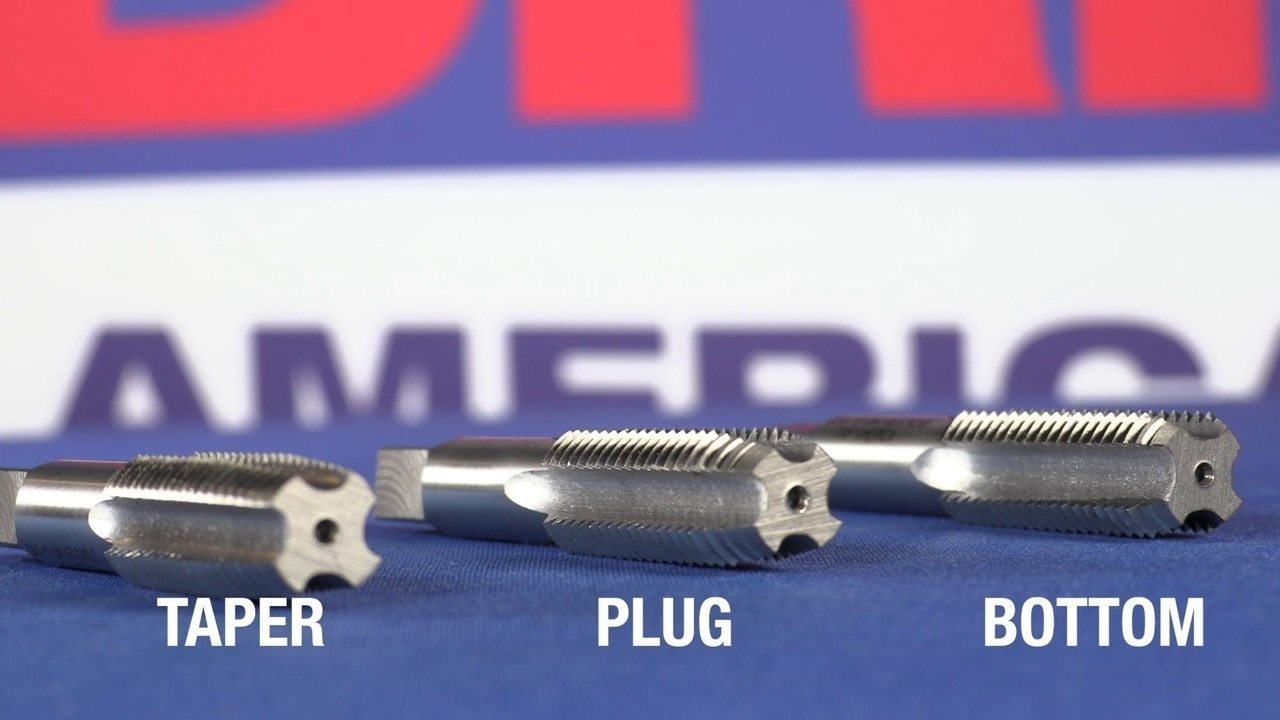

Carbon steel taps are used to re-thread damaged and or jammed threads. They may also be used to thread mild steels. Hand Taps come in three styles Taper, Plug or Bottoming. Taper Style: Starts the thread square with the workpiece. Plug Style: Generally used in thru holes. Bottom Style: Generate the thread to the bottom of the hole. A tap set contains 1 taper, 1 plug and 1 bottoming tap.
Brand Drill America
Part Number DWTB1-1/2-12
Size 1-1/2"-12
Material Carbon Steel
Type Bottoming
Finish Uncoated (Bright)
Number of Flutes 6
Length 6-3/8"
Shank Type Square
Tap Drill Size 1-27/64"
Thread Standard UNF

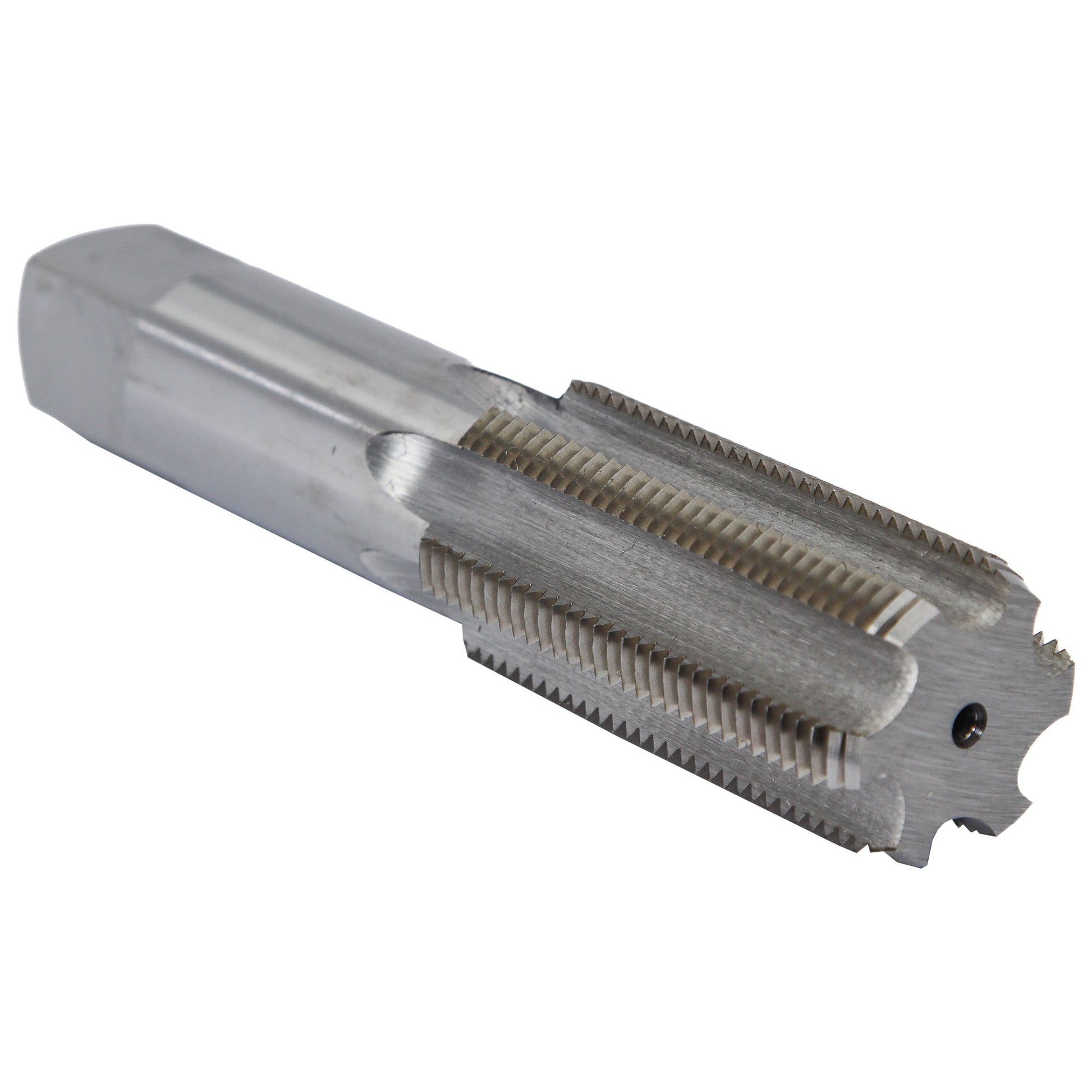

1-1/2"-12 UNF Carbon Steel Bottoming Tap
Product Description
Carbon steel taps are used to re-thread damaged and or jammed threads. They may also be used to thread mild steels. Hand Taps come in three styles Taper, Plug or Bottoming. Taper Style: Starts the thread square with the workpiece. Plug Style: Generally used in thru holes. Bottom Style: Generate the thread to the bottom of the hole. A tap set contains 1 taper, 1 plug and 1 bottoming tap.
Brand Drill America
Part Number DWTB1-1/2-12
Size 1-1/2"-12
Material Carbon Steel
Type Bottoming
Finish Uncoated (Bright)
Number of Flutes 6
Length 6-3/8"
Shank Type Square
Tap Drill Size 1-27/64"
Thread Standard UNF
| Finish | Uncoated (Bright) |
| Length | ["7"] |
| Inch Metric | Inch |
| Material | Carbon Steel |
| Width | ["2"] |
| Number Of Flutes | ["6"] |
| Size | ["1-1/2\"-12"] |
| Nominal Size | 1/2"-12 |
