B&N Pro Membership
Part Number: AV12042
product_class: hardware
Inch / Metric: Inch
Grade: Carbon Steel
Grade / Material: Carbon Steel
Nominal Size: 7/16"-20
Diameter/Pitch: 7/16"-20
Diameter:
Head Type:
Head Diameter:
Length Under Head:
Length:
Point Type:
Finish: Zinc plated with clear dichromate treated
Color:
OEM Replacement:
Recommended Predrill Hole Size:
Wrench Size:
Size:
Fits Screw Sizes:
Screw Size:
Stud Size:
Center of Hole to Edge:
Flange Diameter:
Inside Diameter:
Outside Diameter:
Thickness:
Width:
Drive:
threads_per_inch: 20 TPI
Type: Flat Top with Rubber Grommet
Material: Low Carbon Steel, Case Hardened
Used For:
Industry Type: Automotive & Garage
BN Pro Item: true

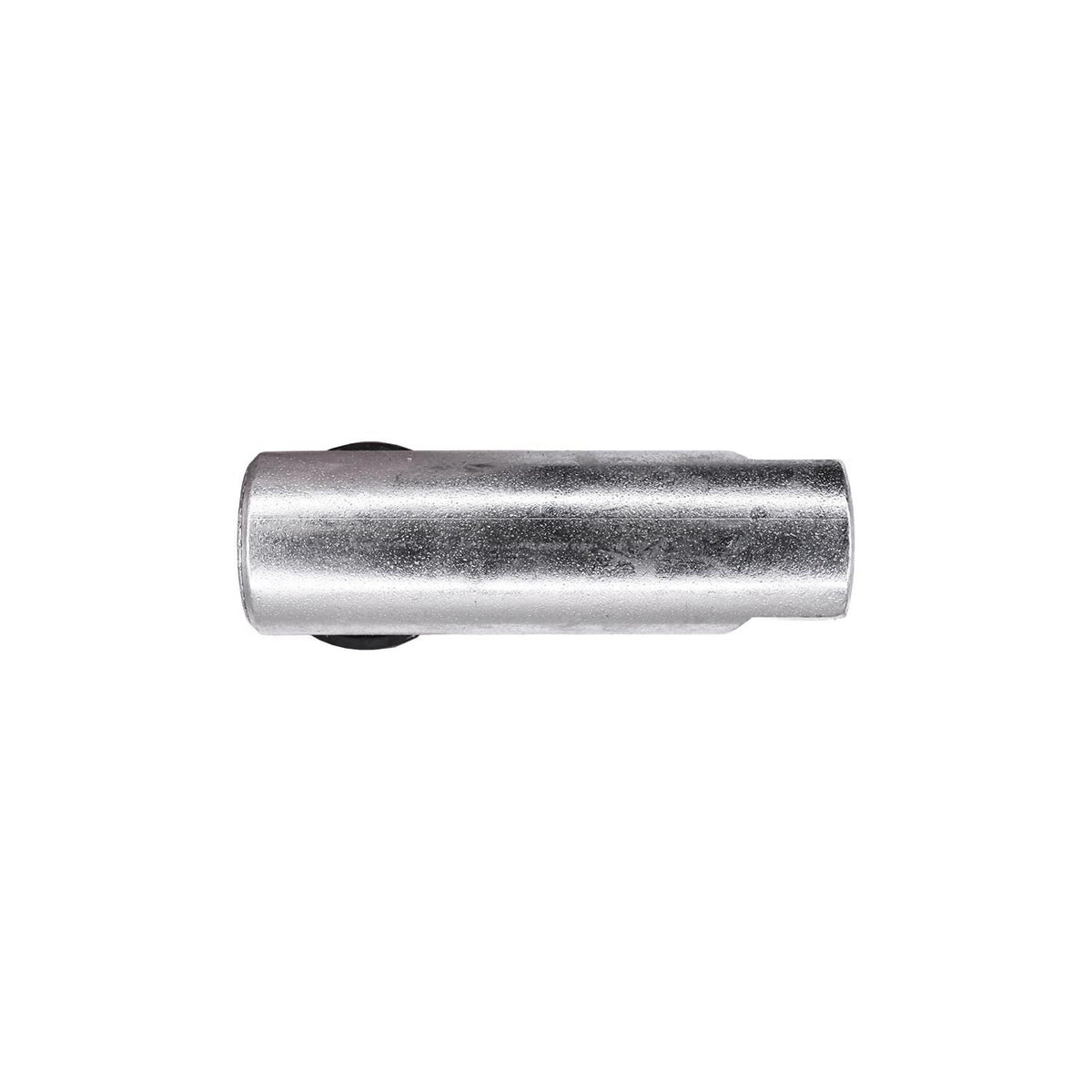

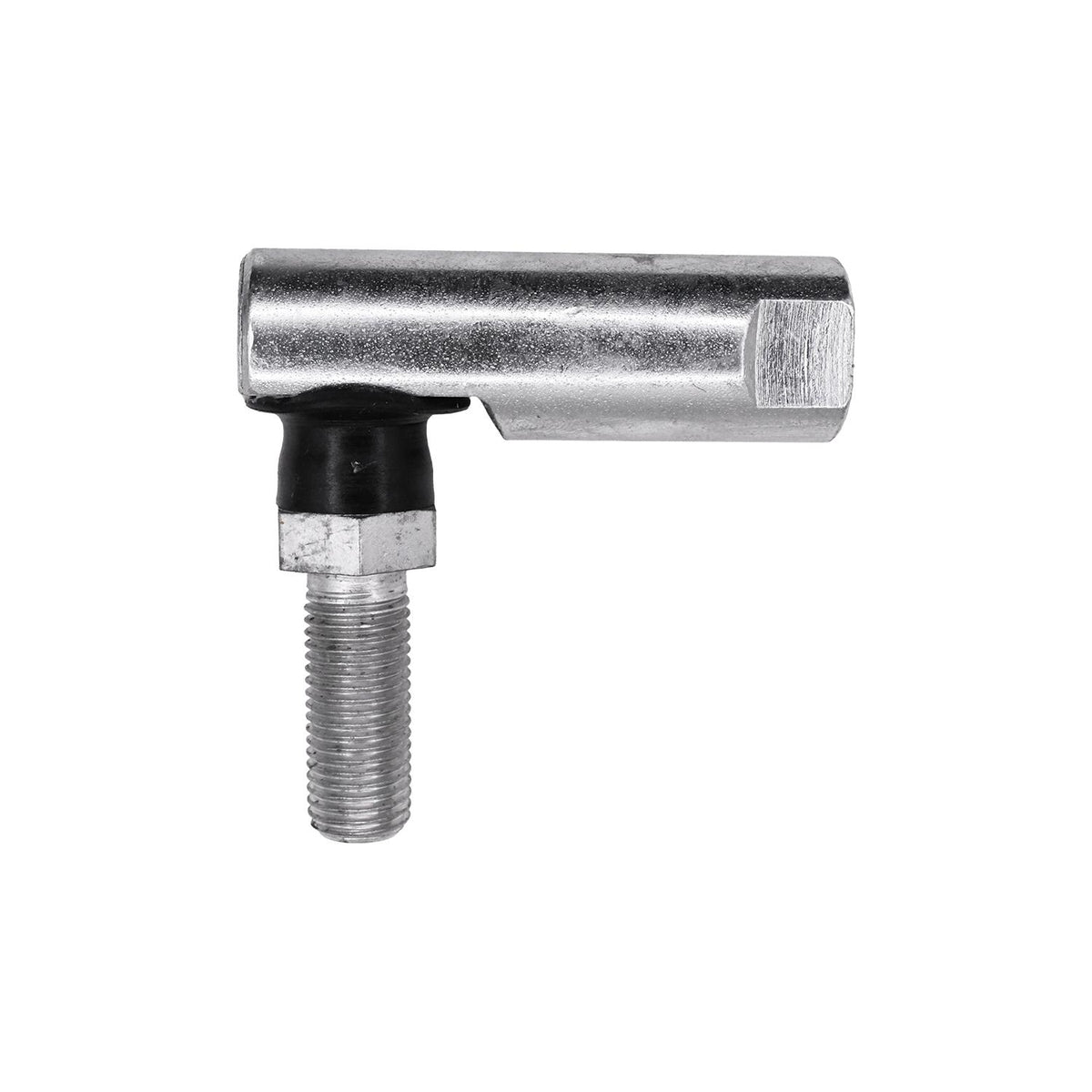

7/16"-20 Flat Top with Rubber Grommet Ball Joint Assembly witheadirt Shields Right, Zinc plated with clear dichromate treated
Part Number: AV12042
product_class: hardware
Inch / Metric: Inch
Grade: Carbon Steel
Grade / Material: Carbon Steel
Nominal Size: 7/16"-20
Diameter/Pitch: 7/16"-20
Diameter:
Head Type:
Head Diameter:
Length Under Head:
Length:
Point Type:
Finish: Zinc plated with clear dichromate treated
Color:
OEM Replacement:
Recommended Predrill Hole Size:
Wrench Size:
Size:
Fits Screw Sizes:
Screw Size:
Stud Size:
Center of Hole to Edge:
Flange Diameter:
Inside Diameter:
Outside Diameter:
Thickness:
Width:
Drive:
threads_per_inch: 20 TPI
Type: Flat Top with Rubber Grommet
Material: Low Carbon Steel, Case Hardened
Used For:
Industry Type: Automotive & Garage
BN Pro Item: true
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
| Diameter Pitch | 7/16"-20 |
| Finish | Zinc plated with clear dichromate treated |
| Nominal Size | 7/16"-20 |
| Grade | Carbon Steel |
| Material | Low Carbon Steel, Case Hardened |
| Inch Metric | Inch |
| Grade Material | Carbon Steel |
| Threads Per Inch | 20 TPI |
