Product Description
Part Number: 8D125HWDSZ/2
Diameter: #8
Length Under Head: 1-1/4"
Grade: Steel
Head Type: Unslotted Hex Washer
Finish: Zinc Clear
Point Type : Self Drilling
Wrench Size: 1/4"
BoltsandNuts.com

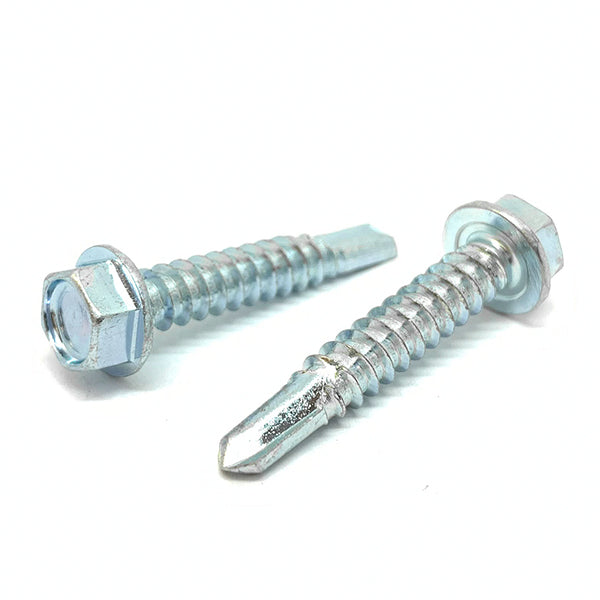

#8-18x1-1/4" Unslotted Hex Washer Head #2 Point Self Drilling Screws Zinc
Product Description
Part Number: 8D125HWDSZ/2
Diameter: #8
Length Under Head: 1-1/4"
Grade: Steel
Head Type: Unslotted Hex Washer
Finish: Zinc Clear
Point Type : Self Drilling
Wrench Size: 1/4"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.13/pc
Popular
250
$0.099/pc
500
$0.0842/pc
1250
$0.0673/pc
Best Value
4000
$0.0505/pc
$0.13
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Thread Size | #8-18 |
| Material | Case hardened steel |
| Drive | Hex |
| Specifications Met | SAE J78 |
| Outside Diameter | 0.438" nom |
| Length | 1-1/4" |
| Finish | Zinc Clear |
| Wrench Size | 1/4" |
| Diameter | #8 |
| Inside Diameter | 0.188" nom |
| Grade | Steel |
| Head Type | Hex Washer Head |
| Point Type | #2 Point |
| Thickness | 0.049" nom |
Technical Drawing
Not to scale · See table for exact dimensions
Technical Dimensions
| Length Under Head | 1-1/4" |
| Major Thread Dia. | 0.1640" |
| Threads Per Inch | 18 TPI |
Self-drilling screw with a drill point that drills its own hole and then forms a mating thread in steel, in one step with no pilot hole. Use a drill point rated for the total material thickness.
