Part Number: 87C700HCS5Z
Partial / Full Threads: Partial
Coarse / Fine Threads: Coarse
Finish: Zinc Clear
Length Under Head: 7"
Diameter/Pitch: 7/8"-9
Related Products: 7-8-9-grade-5-finished-hex-nuts-zinc-clear, 7-8-9-grade-a-nylon-insert-hex-nuts-zinc, 7-8-sae-low-carbon-flat-washers-zinc, 7-8-uss-low-carbon-flat-washers-zinc, 7-8-medium-split-lock-washers-zinc
Grade / Material: Grade 5
product_class: hardware

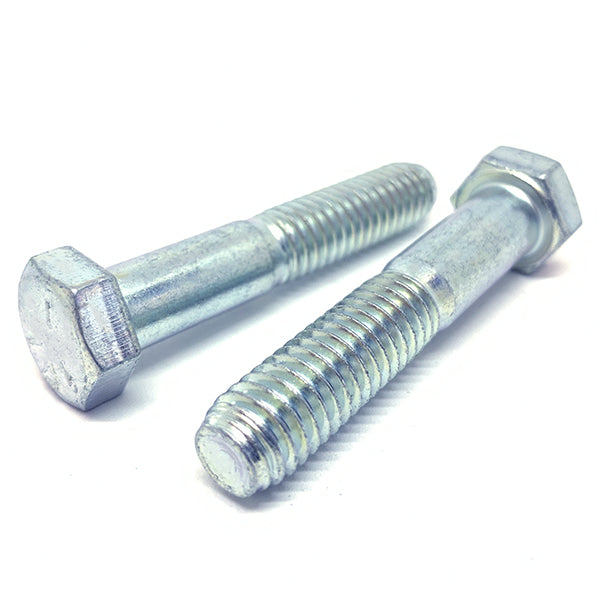

7/8-9x7" Hex Cap Screws Grade 5 Bolts Zinc Clear
Part Number: 87C700HCS5Z
Partial / Full Threads: Partial
Coarse / Fine Threads: Coarse
Finish: Zinc Clear
Length Under Head: 7"
Diameter/Pitch: 7/8"-9
Related Products: 7-8-9-grade-5-finished-hex-nuts-zinc-clear, 7-8-9-grade-a-nylon-insert-hex-nuts-zinc, 7-8-sae-low-carbon-flat-washers-zinc, 7-8-uss-low-carbon-flat-washers-zinc, 7-8-medium-split-lock-washers-zinc
Grade / Material: Grade 5
product_class: hardware
| Diameter Pitch | 7/8"-9 |
| Grade Material | Grade 5 |
| Threads Per Inch | 9 TPI |
| Head Height | 0.531" – 0.563" |
| Clamp Load | 29,440 lbf |
| Yield Strength | 92,000 psi |
| Hardness | Rockwell C25–C34 |
| Torque Lubricated | 322 ft-lb |
| Length Under Head | 7" |
| Partial Full Threads | Partial |
| Width Across Flats | 1.312" (1-5/16") |
| Major Diameter | 0.875" |
| Min Tensile Load | 55,410 lbf |
| Proof Stress | 85,000 psi |
| Head Marking | Three radial lines on head |
| Thread Length | 2.250" min |
| Grade | Grade 5 |
| Thread Class | 2A |
| Width Across Corners | 1.516" max |
| Proof Load | 39,250 lbf |
| Tensile Strength | 120,000 psi |
| Tensile Stress Area | 0.4617 sq in |
| Torque Dry | 429 ft-lb |
