Product Description
Part Number: 43SNTX8Y
Diameter: 7/16"
Grade: Grade 8
Finish: Zinc Yellow
Inside Diameter : 15/32" (Min 0.464", Max 0.484")
Outside Diameter: 15/16" (Min 0.915", Max 0.937")
Thickness : 0.110" - 0.126"
BoltsandNuts.com

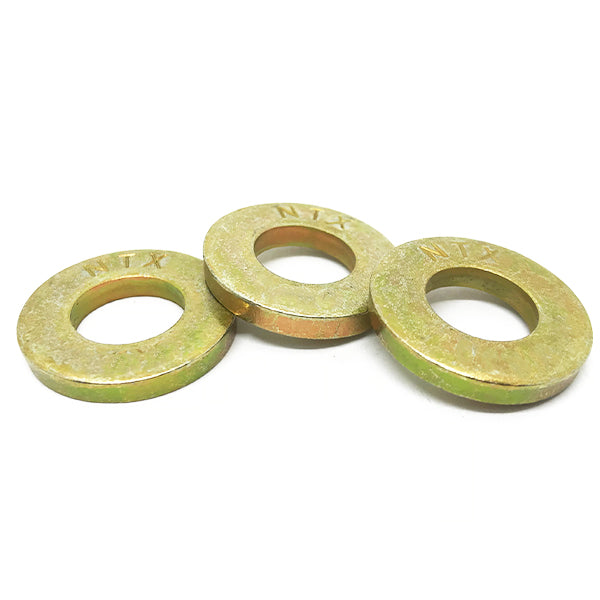

7/16" SAE Grade 8 Extra Thick Flat Washers Zinc Yellow
Product Description
Part Number: 43SNTX8Y
Diameter: 7/16"
Grade: Grade 8
Finish: Zinc Yellow
Inside Diameter : 15/32" (Min 0.464", Max 0.484")
Outside Diameter: 15/16" (Min 0.915", Max 0.937")
Thickness : 0.110" - 0.126"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.43/pc
Popular
100
$0.33/pc
200
$0.28/pc
500
$0.22/pc
Best Value
2400
$0.17/pc
$0.43
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Grade | Grade 8 Hardened |
| Hardness | Rockwell C33–C39 |
| Diameter | 7/16" |
| Inside Diameter | 0.469" nom |
| Material | Through-hardened steel |
| Specifications Met | ASME B18.22.1 |
| Thickness | 0.065" nom |
| System | Inch |
| Finish | Zinc Yellow |
| Pattern | SAE (Narrow) series |
| Outside Diameter | 0.922" nom |
Technical Drawing
Not to scale · ASME B18.22.1 · See table for exact dimensions
Technical Dimensions
| Outside Diameter | 0.922" nom |
| Inside Diameter | 0.469" nom |
| Thickness | 0.065" nom |
| Fits Bolt Size | 7/16" |
| Series | SAE (Narrow) series |
| Material | Through-hardened steel |
Flat round washer that spreads bolt and nut bearing load over a wider area, protecting the joint material and reducing pull-through or marring.
Dimensions conform to ASME B18.22.1 and may vary within specified manufacturing tolerances.
