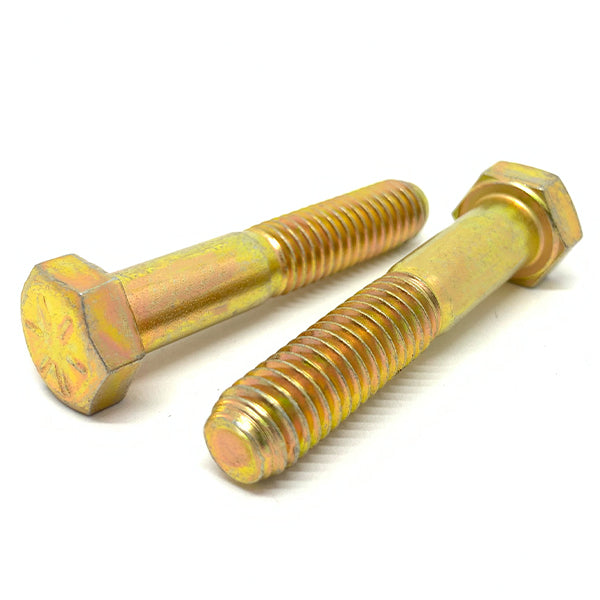

7/16-20x2-1/2" Hex Head Cap Screws Grade 8 Zinc Yellow

Product Description

Part Number: 43F250HCS8Y
Diameter/Pitch: 7/16"-20
Length Under Head: 2-1/2"
Grade: Grade 8
Finish: Zinc Yellow
Coarse / Fine Threads: Fine
Partial / Full Threads: Partial
Wrench Size: 5/8"
Click Here for Tech Drawing

BoltsandNuts.com

7/16-20x2-1/2" Hex Head Cap Screws Grade 8 Zinc Yellow

SKU: 43F250HCS8Y

Product Description

Part Number: 43F250HCS8Y
Diameter/Pitch: 7/16"-20
Length Under Head: 2-1/2"
Grade: Grade 8
Finish: Zinc Yellow
Coarse / Fine Threads: Fine
Partial / Full Threads: Partial
Wrench Size: 5/8"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$2.42/pc

Popular

10

$1.81/pc

20

$1.54/pc

50

$1.23/pc

Best Value

300

$0.92/pc

$2.42

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	7/16"-20
Grade Material	Grade 8
Partial Full Threads	Partial
Threads Per Inch	20 TPI
Width Across Corners	0.722" max
Proof Load	14,250 lbf
Tensile Strength	150,000 psi
Tensile Stress Area	0.1187 sq in
Torque Dry	78 ft-lb
Head Type	Hex Cap
Inch Metric	Inch

Length Under Head	2-1/2"
Finish	Zinc Yellow
Coarse Fine Threads	Fine
Wrench Size	5/8"
Head Height	0.272" – 0.291"
Clamp Load	10,680 lbf
Yield Strength	130,000 psi
Hardness	Rockwell C33–C39
Torque Lubricated	58 ft-lb
Nominal Size	7/16"

Grade	Grade 8
Material	Medium carbon alloy steel, quenched and tempered
Thread Class	2A
Width Across Flats	0.625" (5/8")
Major Diameter	0.438"
Min Tensile Load	17,810 lbf
Proof Stress	120,000 psi
Head Marking	Six radial lines on head
Length	2-1/2"
Thread Length	1.125" min
