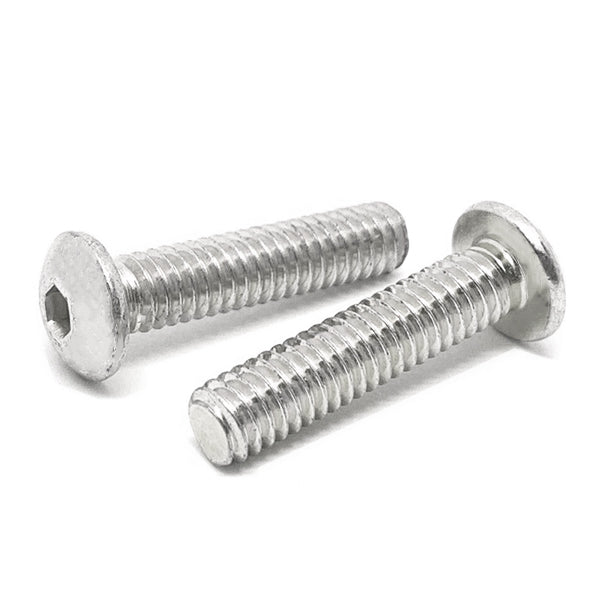

#6-32x1/2" 18-8 Stainless Steel Button Head Socket Cap Screws

Product Description

Part Number: 6C50BSHCSSS
Diameter/Pitch: #6-32
Length Under Head: 1/2"
Grade: 18-8 (304) Stainless Steel
Finish: Plain
Thread Series: Coarse (UNC)
Threading: Fully threaded
Hex Key Size: 7/64"

BoltsandNuts.com

#6-32x1/2" 18-8 Stainless Steel Button Head Socket Cap Screws

SKU: 6C50BSHCSSS

Product Description

Part Number: 6C50BSHCSSS
Diameter/Pitch: #6-32
Length Under Head: 1/2"
Grade: 18-8 (304) Stainless Steel
Finish: Plain
Thread Series: Coarse (UNC)
Threading: Fully threaded
Hex Key Size: 7/64"

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.08/pc

Popular

100

$0.0600/pc

200

$0.0510/pc

500

$0.0408/pc

Best Value

2500

$0.0306/pc

$0.08

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Thread Size	#6-32
Material	18-8 Stainless
Drive	Hex Socket
Threading	Fully threaded
Tensile Strength (min)	80,000 psi

Length	1/2"
Finish	Plain
Hex Key Size	5/64"
Head Height	0.073" max
Specifications Met	ASME B18.3, ASTM F879

Grade	18-8 Stainless
Head Type	Button Socket
Thread Series	Coarse (UNC)
Thread Class	2A
Head Diameter	0.262" max

Technical Drawing

Not to scale · ASME B18.3 · See table for exact dimensions

Technical Dimensions

Length Under Head	1/2"
Major Thread Dia.	0.138"
Head Height	0.073" max
Head Diameter	0.262" max
Drive	Hex Socket
Hex Key Size	5/64"
Threads Per Inch	32 TPI
Min. Tensile Strength	80,000 psi
Material	18-8 Stainless

Low-profile domed head with an internal hex socket, for use where a socket cap head would protrude too far. The shallower head carries less clamp load than a standard socket cap screw.

Dimensions conform to ASME B18.3 and may vary within specified manufacturing tolerances.
