Product Description
Part Number: 62SFW2Z
Diameter: 5/8"
Grade: Low Carbon
Finish: Zinc Clear
Inside Diameter : 21/32" (Min 0.649", Max 0.686")
Outside Diameter: 1-5/16" (Min 1.305", Max 1.342")
Thickness : 0.074" - 0.121"
BoltsandNuts.com

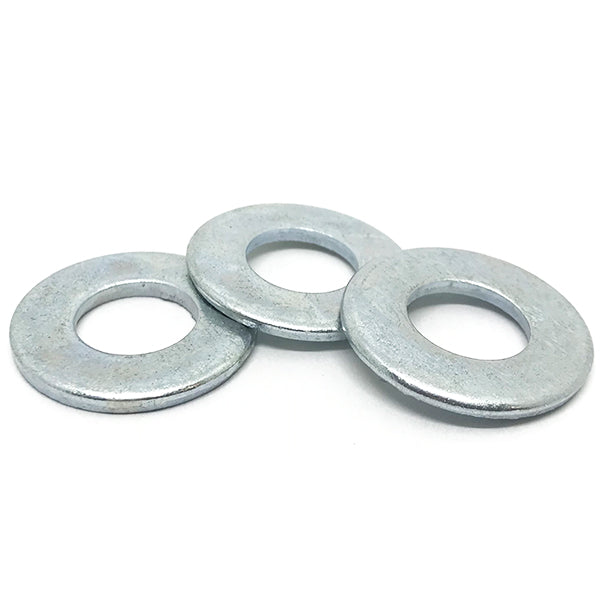

5/8" SAE Low Carbon Flat Washers Zinc
Product Description
Part Number: 62SFW2Z
Diameter: 5/8"
Grade: Low Carbon
Finish: Zinc Clear
Inside Diameter : 21/32" (Min 0.649", Max 0.686")
Outside Diameter: 1-5/16" (Min 1.305", Max 1.342")
Thickness : 0.074" - 0.121"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.33/pc
Popular
25
$0.25/pc
50
$0.21/pc
125
$0.17/pc
Best Value
625
$0.13/pc
$0.33
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Grade | Low Carbon |
| Specifications Met | ASME B18.22.1 |
| Thickness | 0.095" nom |
| System | Inch |
| Material | Low carbon steel |
| Pattern | SAE (Narrow) series |
| Outside Diameter | 1.312" nom |
| Finish | Zinc Clear |
| Diameter | 5/8" |
| Inside Diameter | 0.656" nom |
Technical Drawing
Not to scale · ASME B18.22.1 · See table for exact dimensions
Technical Dimensions
| Outside Diameter | 1.312" nom |
| Inside Diameter | 0.656" nom |
| Thickness | 0.095" nom |
| Fits Bolt Size | 5/8" |
| Series | SAE (Narrow) series |
| Material | Low carbon steel |
Flat round washer that spreads bolt and nut bearing load over a wider area, protecting the joint material and reducing pull-through or marring.
Dimensions conform to ASME B18.22.1 and may vary within specified manufacturing tolerances.
