B&N Pro Membership
Product Description
Part Number: 62FHSN2Z
Diameter/Pitch: 5/8"-18
Grade: Grade 2
Finish: Zinc Clear
Thread Series: Fine (UNF)
Wrench Size: 15/16"
BoltsandNuts.com

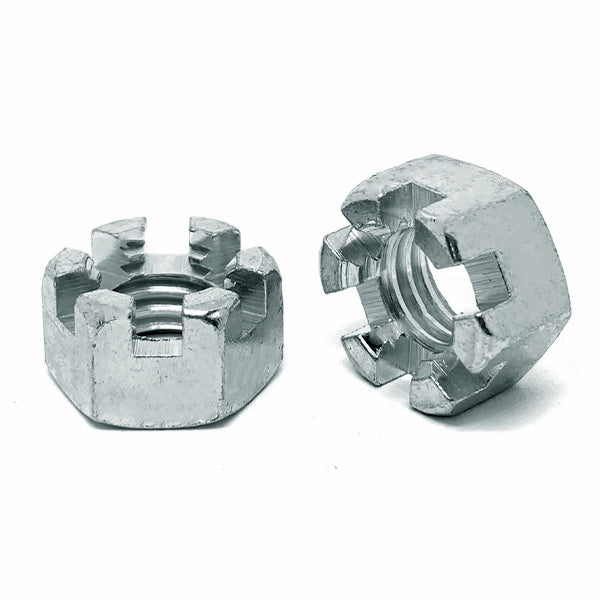

5/8"-18 Slotted Finished Hex Nuts Zinc Clear
Product Description
Part Number: 62FHSN2Z
Diameter/Pitch: 5/8"-18
Grade: Grade 2
Finish: Zinc Clear
Thread Series: Fine (UNF)
Wrench Size: 15/16"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$1.53/pc
Popular
40
$1.14/pc
80
$0.97/pc
200
$0.78/pc
Best Value
350
$0.58/pc
$1.53
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Thread Size | 5/8"-18 |
| Finish | Zinc Clear |
| Wrench Size | 15/16" |
| Thread Class | 2B |
| Grade | Grade 2 |
| Head Type | Hex |
| Thread Series | Fine (UNF) |
| Thread Size | 5/8"-18 |
| Material | Low carbon steel |
| Drive | Slotted |
| Head Height | 35/64" |
| Height | 0.547" nom |
Technical Drawing
Not to scale · ASME B18.2.2 · See table for exact dimensions
Technical Dimensions
| Width Across Flats | 0.938" (15/16") |
| Nut Height | 0.547" nom |
| Thread Size | 5/8"-18 |
| Width Across Corners | 1.083" max |
| Thread Class | 2B |
Slotted hex nut: slots across the top line up with a cross-drilled bolt, and a cotter pin through the slot and hole stops the nut from backing off.
Dimensions conform to ASME B18.2.2 and may vary within specified manufacturing tolerances.
