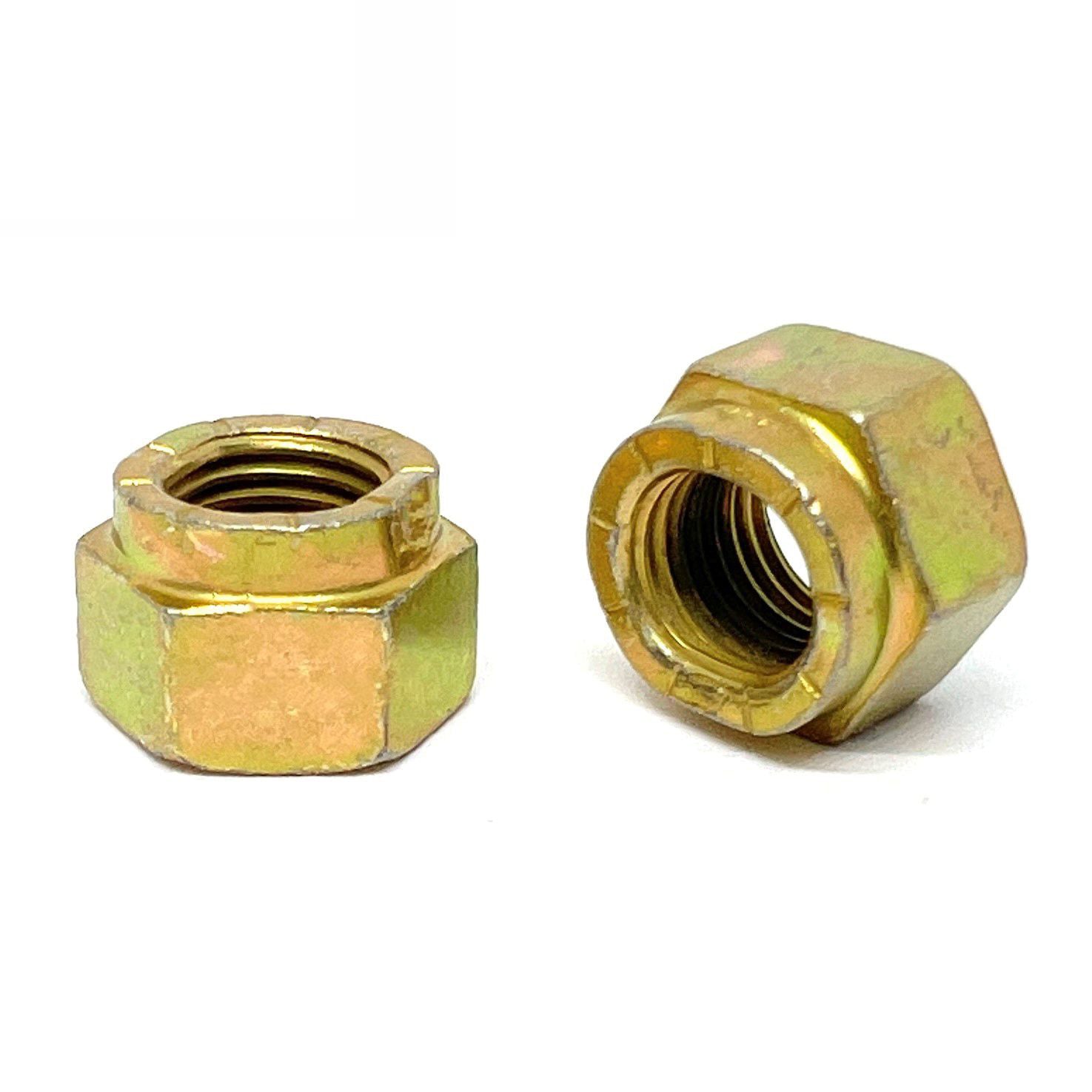

5/8"-18 Grade L-9 Hex Collar Locknuts USA Zinc Yellow

Product Description

Part Number: 62FHLNL9Y
Diameter/Pitch: 5/8"-18
Grade: Grade L-9
Finish: Zinc Yellow
Thread Series: Fine (UNF)
Wrench Size: 15/16"
Country of Origin: USA

BoltsandNuts.com

5/8"-18 Grade L-9 Hex Collar Locknuts USA Zinc Yellow

SKU: 62FHLNL9Y

Product Description

Part Number: 62FHLNL9Y
Diameter/Pitch: 5/8"-18
Grade: Grade L-9
Finish: Zinc Yellow
Thread Series: Fine (UNF)
Wrench Size: 15/16"
Country of Origin: USA

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$5.96/pc

Popular

18

$4.47/pc

36

$3.80/pc

90

$3.04/pc

Best Value

600

$2.28/pc

$5.96

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Thread Size	5/8"-18
Finish	Zinc Yellow
Thread Series	Fine (UNF)
Specifications Met	IFI-100/107
Prevailing Torque	105 in-lb max (first installation)

Grade	Grade L-9
Head Type	Hex
Thread Class	2B
Lock Type	Collar Lock Nuts
Break Away Torque	20 in-lb min (fifth removal)

Material	Medium carbon steel, heat treated
Wrench Size	15/16"
Proof Load (min)	38,390 lbf
Locking Type	All-metal prevailing torque (distorted thread)
Max Temperature	Rated to 450°F (all-metal)

Technical Drawing

Not to scale · IFI-100/107 · See table for exact dimensions

Technical Dimensions

Width Across Flats	0.938" (15/16")
Thread Size	5/8"-18
Width Across Corners	1.083" max
Thread Class	2B
Proof Load	38,390 lbf
Prevailing Torque	105 in-lb max (first installation)
Break-Away Torque	20 in-lb min (fifth removal)
Locking Type	All-metal prevailing torque (distorted thread)
Max Temperature	Rated to 450°F (all-metal)
Material	Medium carbon steel, heat treated

All-metal collar lock nut: a crimped collar on top grips the bolt thread to resist vibration loosening without a nylon insert. Suitable for elevated temperatures where nylon would fail.

Dimensions conform to IFI-100/107 and may vary within specified manufacturing tolerances.
