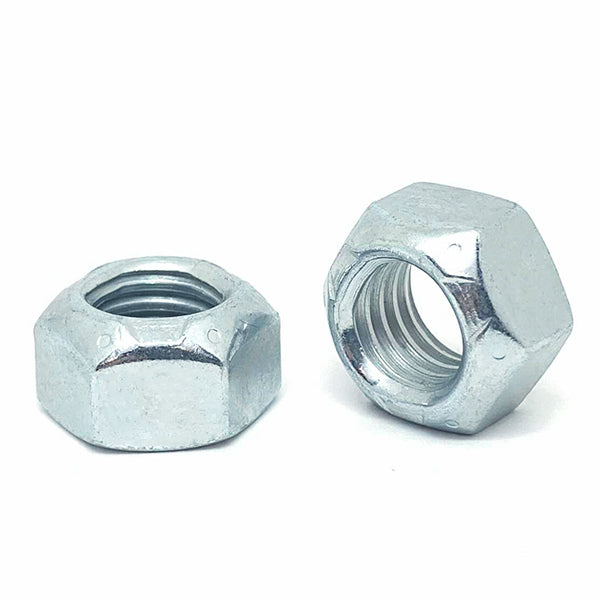

5/8"-18 Grade 8 Hex Prevailing Torque Top Lock Nuts Zinc

Product Description

Part Number: 62FPTNCZ
Diameter/Pitch: 5/8"-18
Grade: Grade 8
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Wrench Size: 15/16"
Click Here for Tech Drawing

BoltsandNuts.com

5/8"-18 Grade 8 Hex Prevailing Torque Top Lock Nuts Zinc

SKU: 62FPTNCZ

Product Description

Part Number: 62FPTNCZ
Diameter/Pitch: 5/8"-18
Grade: Grade 8
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Wrench Size: 15/16"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.07/pc

Popular

25

$0.80/pc

50

$0.68/pc

125

$0.54/pc

Best Value

400

$0.40/pc

$1.07

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	5/8"-18
Finish	Zinc Clear
Threads Per Inch	18 TPI
Proof Load	38,390 lbf
Lock Type	Top Lock Nuts
Prevailing Torque	105 in-lb max (first installation)

Grade	Grade 8
Material	Medium carbon steel, heat treated
Width Across Flats	0.938" (15/16")
Proof Stress	150,000 psi
Locking Type	All-metal prevailing torque (distorted thread)
Break Away Torque	20 in-lb min (fifth removal)

Grade Material	Grade 8
Thread Class	2B
Width Across Corners	1.083" max
Tensile Stress Area	0.2560 sq in
Inch Metric	Inch
Max Temperature	Rated to 450°F (all-metal)
