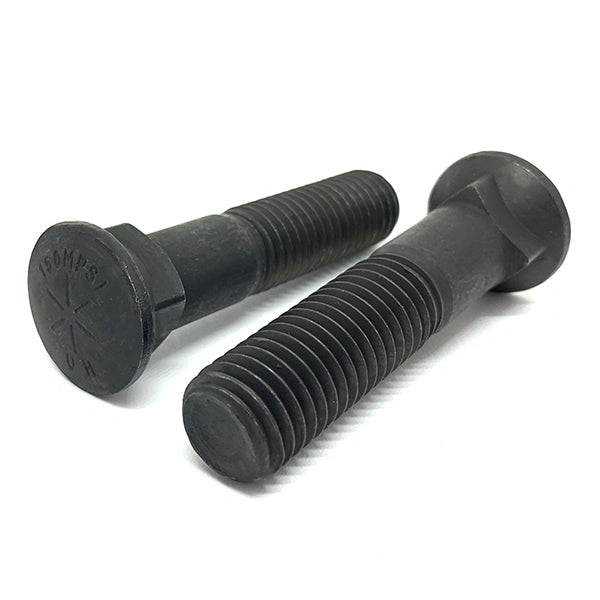

5/8-11x5" Grade 8 #3 Dome Head Plow Bolts Plain

Product Description

Part Number: 62C500BPL8PL
Diameter/Pitch: 5/8"-11
Length Under Head: 5"
Grade: Grade 8
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Square Width (Max): 0.640"
Click Here for Tech Drawing

BoltsandNuts.com

5/8-11x5" Grade 8 #3 Dome Head Plow Bolts Plain

SKU: 62C500BPL8PL

Product Description

Part Number: 62C500BPL8PL
Diameter/Pitch: 5/8"-11
Length Under Head: 5"
Grade: Grade 8
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Square Width (Max): 0.640"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$9.87/pc

Popular

4

$7.40/pc

8

$6.29/pc

20

$5.03/pc

Best Value

90

$3.77/pc

$9.87

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	5/8"-11
Grade Material	Grade 8
Partial Full Threads	Partial
Threads Per Inch	11 TPI
Clamp Load	20,340 lbf
Yield Strength	130,000 psi
Hardness	Rockwell C33–C39
Torque Lubricated	159 ft-lb
Head Type	Flat Countersunk, Square Neck

Length Under Head	5"
Finish	Plain
Coarse Fine Threads	Coarse
Major Diameter	0.625"
Min Tensile Load	13,560 lbf
Proof Stress	120,000 psi
Head Marking	Six radial lines on head
Square Width Max	0.640"
Nominal Size	5/8"

Grade	ASTM A307 Grade A
Material	Low carbon steel (ASTM A307 Grade A)
Thread Class	2A
Proof Load	27,120 lbf
Tensile Strength	60,000 psi
Tensile Stress Area	0.2260 sq in
Torque Dry	212 ft-lb
Length	5"
Inch Metric	Inch
