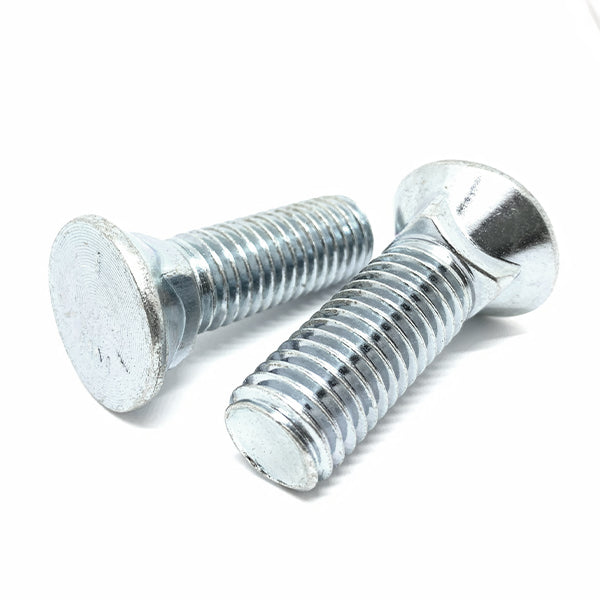

5/8-11x3-1/2" #3 Flat Round Head Grade 5 Plow Bolts Zinc

Product Description

Part Number: 62C350BPL5Z
Diameter/Pitch: 5/8"-11
Length Under Head: 3-1/2"
Grade: Grade 5
Head Type: #3 Flat Round
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Square Width (Max): 0.640"
Click Here for Tech Drawing

BoltsandNuts.com

5/8-11x3-1/2" #3 Flat Round Head Grade 5 Plow Bolts Zinc

SKU: 62C350BPL5Z

Product Description

Part Number: 62C350BPL5Z
Diameter/Pitch: 5/8"-11
Length Under Head: 3-1/2"
Grade: Grade 5
Head Type: #3 Flat Round
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Square Width (Max): 0.640"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$5.77/pc

Popular

5

$4.33/pc

10

$3.68/pc

25

$2.94/pc

Best Value

125

$2.20/pc

$5.77

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	5/8"-11
Grade Material	Grade 5
Partial Full Threads	Full
Threads Per Inch	11 TPI
Clamp Load	14,410 lbf
Yield Strength	92,000 psi
Hardness	Rockwell C25–C34
Torque Lubricated	113 ft-lb
Head Type	Flat Countersunk, Square Neck

Length Under Head	3-1/2"
Finish	Zinc Clear
Coarse Fine Threads	Coarse
Major Diameter	0.625"
Min Tensile Load	13,560 lbf
Proof Stress	85,000 psi
Head Marking	Three radial lines on head
Square Width Max	0.640"
Nominal Size	5/8"

Grade	ASTM A307 Grade A
Material	Low carbon steel (ASTM A307 Grade A)
Thread Class	2A
Proof Load	19,210 lbf
Tensile Strength	60,000 psi
Tensile Stress Area	0.2260 sq in
Torque Dry	150 ft-lb
Length	3-1/2"
Inch Metric	Inch
