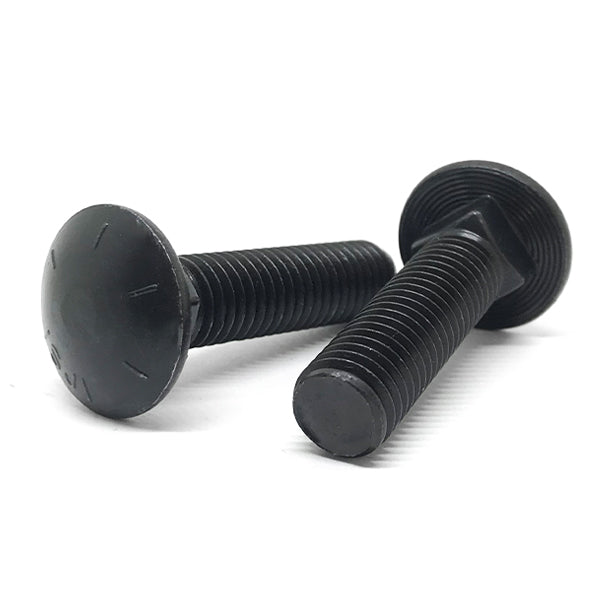

5/8-11x2" Grade 8 Round Head Square Neck Full Thread Carriage Bolts Plain

Product Description

Part Number: 62C200BCG8PL
Diameter/Pitch: 5/8"-11
Length Under Head: 2"
Grade: Grade 8
Finish: Plain & Oil
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Square Width (Max): 0.642"

BoltsandNuts.com

5/8-11x2" Grade 8 Round Head Square Neck Full Thread Carriage Bolts Plain

SKU: 62C200BCG8PL

Product Description

Part Number: 62C200BCG8PL
Diameter/Pitch: 5/8"-11
Length Under Head: 2"
Grade: Grade 8
Finish: Plain & Oil
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Square Width (Max): 0.642"

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$3.63/pc

Popular

10

$2.72/pc

20

$2.31/pc

50

$1.85/pc

Best Value

180

$1.38/pc

$3.63

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	5/8-11
Grade Material	Grade 8
Partial Full Threads	Full
Threads Per Inch	11 TPI
Clamp Load	20,340 lbf
Yield Strength	130,000 psi
Hardness	Rockwell C33–C39
Torque Lubricated	159 ft-lb
Head Type	Round Head, Square Neck

Length Under Head	2"
Finish	Plain
Coarse Fine Threads	Coarse
Major Diameter	0.625"
Min Tensile Load	33,900 lbf
Proof Stress	120,000 psi
Head Marking	Six radial lines on head
Square Width Max	0.625" nom (square neck)
Nominal Size	5/8"

Grade	Grade 8
Material	Medium carbon alloy steel, quenched and tempered
Thread Class	2A
Proof Load	27,120 lbf
Tensile Strength	150,000 psi
Tensile Stress Area	0.2260 sq in
Torque Dry	212 ft-lb
Length	2"
Inch Metric	Inch
