Product Description
Part Number: 62C200BFL8Y
Diameter/Pitch: 5/8"-11
Length Under Head: 2"
Grade: Grade 8
Finish: Zinc Yellow
Thread Series: Coarse (UNC)
Threading: Fully threaded
Wrench Size: 15/16"
BoltsandNuts.com

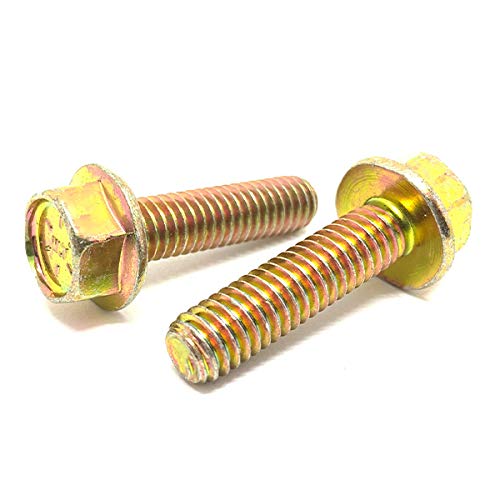

5/8-11x2" Grade 8 Hex Flange Frame Bolts Zinc Yellow
Product Description
Part Number: 62C200BFL8Y
Diameter/Pitch: 5/8"-11
Length Under Head: 2"
Grade: Grade 8
Finish: Zinc Yellow
Thread Series: Coarse (UNC)
Threading: Fully threaded
Wrench Size: 15/16"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$6.91/pc
Popular
10
$5.18/pc
20
$4.41/pc
50
$3.53/pc
Best Value
120
$2.64/pc
$6.91
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Thread Size | 5/8"-11 |
| Material | Medium carbon alloy steel, quenched and tempered |
| Wrench Size | 15/16" |
| Head Marking | Six radial lines on head |
| Proof Load (min) | 27,120 lbf |
| Length | 2" |
| Finish | Zinc Yellow |
| Thread Series | Coarse (UNC) |
| Thread Class | 2A |
| Hardness | Rockwell C33–C39 |
| Grade | Grade 8 |
| Head Type | Hex Flange (Frame Bolt) |
| Threading | Fully threaded |
| Tensile Strength (min) | 150,000 psi |
| Specifications Met | IFI-111, SAE J429 Grade 8 |
Technical Drawing
Not to scale · ASME B18.2.1 / IFI-111 · See table for exact dimensions
Technical Dimensions
| Length Under Flange | 2" |
| Major Thread Dia. | 0.625" |
| Threads Per Inch | 11 TPI |
| Thread Class | 2A |
| Proof Load | 27,120 lbf |
| Min. Tensile Strength | 150,000 psi |
| Yield Strength | 130,000 psi |
| Hardness | Rockwell C33–C39 |
| Material | Medium carbon alloy steel, quenched and tempered |
Hex head with an integral washer-style flange that spreads clamp load over a wider area, often removing the need for a separate washer. Fully threaded shank, with unified coarse (UNC) threads.
Dimensions conform to ASME B18.2.1 / IFI-111 and may vary within specified manufacturing tolerances.
