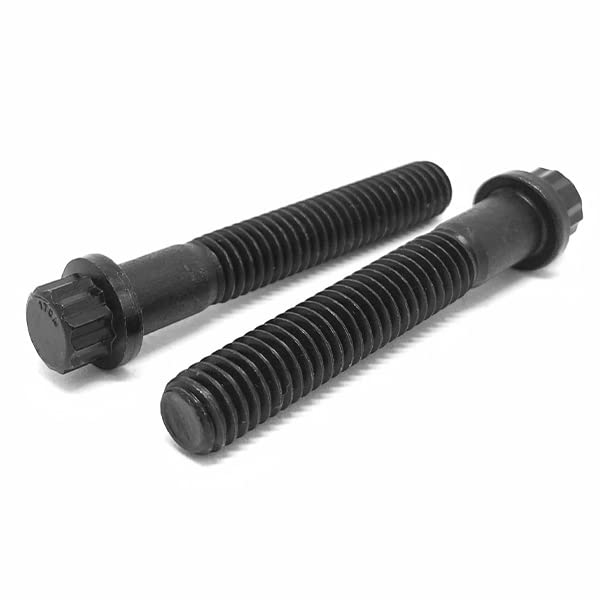

5/8-11x2-3/4" Alloy 12 Point Flange Screws Black Oxide

Product Description

Part Number: 62C275BFL12PL
Diameter/Pitch: 5/8"-11
Length Under Head: 2-3/4"
Grade: Alloy Steel (170M)
Finish: Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 5/8"
Click Here for Tech Drawing

BoltsandNuts.com

5/8-11x2-3/4" Alloy 12 Point Flange Screws Black Oxide

SKU: 62C275BFL12PL

Product Description

Part Number: 62C275BFL12PL
Diameter/Pitch: 5/8"-11
Length Under Head: 2-3/4"
Grade: Alloy Steel (170M)
Finish: Black Oxide
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 5/8"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$6.43/pc

Popular

5

$4.82/pc

10

$4.09/pc

25

$3.27/pc

Best Value

130

$2.45/pc

$6.43

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	5/8"-11
Grade Material	Alloy Steel (170M)
Partial Full Threads	Partial
Threads Per Inch	11 TPI
Proof Load	31,640 lbf
Tensile Strength	170,000 psi
Hardness	Rockwell C33–C38
Drive	12-Point External
Nominal Size	5/8"

Length Under Head	2-3/4"
Finish	Black Oxide
Coarse Fine Threads	Coarse
Wrench Size	5/8"
Clamp Load	23,730 lbf
Yield Strength	150,000 psi
Torque Dry	247 ft-lb
Length	2-3/4"
Inch Metric	Inch

Grade	Alloy Steel (170 ksi)
Material	Alloy steel, quenched and tempered (IFI-115)
Thread Class	3A
Major Diameter	0.625"
Min Tensile Load	38,420 lbf
Tensile Stress Area	0.2260 sq in
Torque Lubricated	185 ft-lb
Head Type	12-Point Flange
