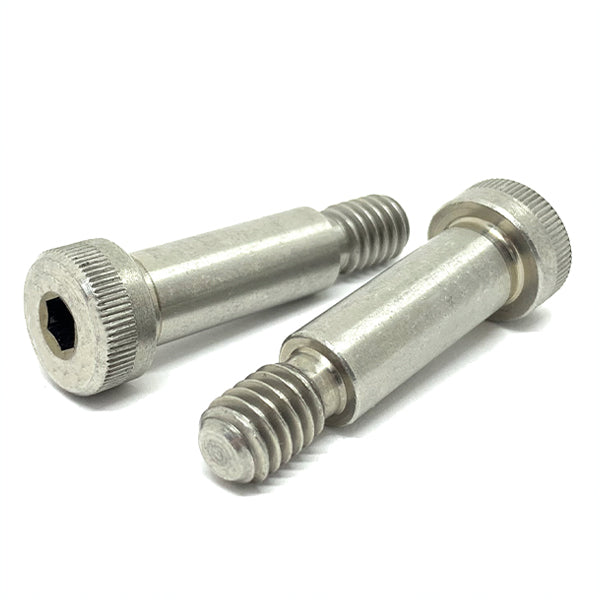

5/16" x 2-1/4" x 1/4"-20 Allen Socket Stainless Steel Shoulder Bolts
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$17.38/pc
Popular
5
$13.0320/pc
10
$11.0770/pc
25
$8.8616/pc
Best Value
125
$6.6463/pc
$17.38
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Length | 2-1/4" |
| Finish | Plain |
| Thread Class | 2A |
| Thread Size | 1/4"-20 |
| Shoulder Length | 2-1/4" |
| Grade | 18-8 Stainless |
| Drive | Hex Socket |
| Tensile Strength (min) | 70,000 psi |
| Nominal Size | 5/16" |
| System | Inch |
| Material | 18-8 Stainless |
| Thread Series | Coarse (UNC) |
| Specifications Met | ASME B18.3 |
| Shoulder Diameter | 0.312" |
Technical Drawing
Not to scale · ASME B18.3 · See table for exact dimensions
Technical Dimensions
| Shoulder Diameter | 0.312" |
| Shoulder Length | 2-1/4" |
| Thread Size | 1/4"-20 |
| Drive | Hex Socket |
| Material | 18-8 Stainless |
Precision-ground unthreaded shoulder with a smaller threaded end. The shoulder acts as a bearing or pivot surface and sets the clamped thickness. The thread is a smaller diameter than the shoulder — size the tapped hole to the thread, not the shoulder.
Dimensions conform to ASME B18.3 and may vary within specified manufacturing tolerances.
