Product Description
Part Number: 31C100SFS5Z
Diameter/Pitch: 5/16"-18
Grade: Grade 5
Length Under Head: 1"
Finish: Zinc Clear
Coarse/Fine Threads: Coarse
Partial/Full Threads: Full
Wrench Size: 1/2"
BoltsandNuts.com

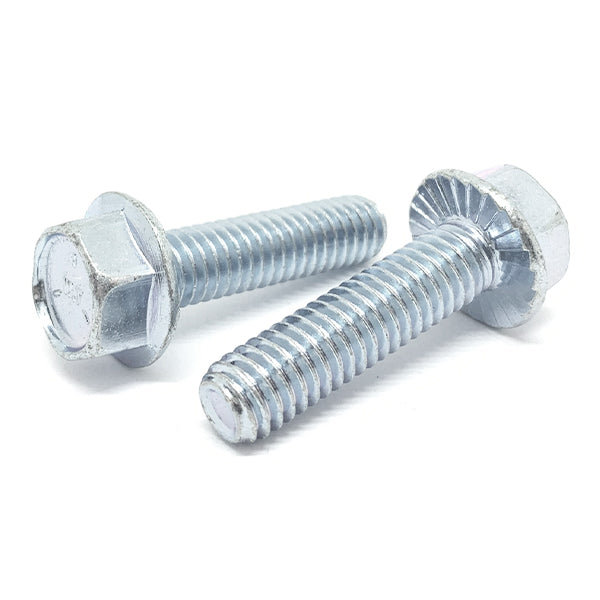

5/16-18x1" Grade 5 Serrated Hex Flange Bolts Zinc Clear
Product Description
Part Number: 31C100SFS5Z
Diameter/Pitch: 5/16"-18
Grade: Grade 5
Length Under Head: 1"
Finish: Zinc Clear
Coarse/Fine Threads: Coarse
Partial/Full Threads: Full
Wrench Size: 1/2"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.58/pc
Popular
50
$0.43/pc
100
$0.37/pc
250
$0.29/pc
Best Value
1100
$0.22/pc
$0.58
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | 5/16-18 |
| Grade Material | Grade 5 |
| Partial Full Threads | Full |
| Threads Per Inch | 18 TPI |
| Proof Load | 4,460 lbf |
| Tensile Strength | 120,000 psi |
| Tensile Stress Area | 0.0524 sq in |
| Torque Dry | 17 ft-lb |
| Head Type | Hex Flange (Frame Bolt) |
| Diameter Pitch 1 | 5/16"-18 |
| Length Under Head | 1" |
| Finish | Zinc Clear |
| Coarse Fine Threads | Coarse |
| Wrench Size | 1/2" |
| Clamp Load | 3,340 lbf |
| Yield Strength | 92,000 psi |
| Hardness | Rockwell C25–C34 |
| Torque Lubricated | 13 ft-lb |
| Nominal Size | 5/16" |
| Grade | Grade 5 |
| Material | Medium carbon steel, quenched and tempered |
| Thread Class | 2A |
| Major Diameter | 0.312" |
| Min Tensile Load | 6,290 lbf |
| Proof Stress | 85,000 psi |
| Head Marking | Three radial lines on head |
| Length | 1" |
| Inch Metric | Inch |
