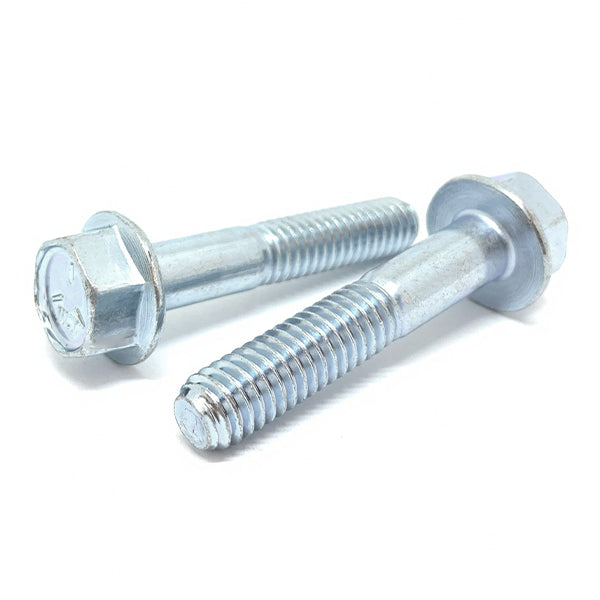

5/16-18x1-1/2" Grade 5 Hex Flange Bolts Zinc Clear

Product Description

Part Number: 31C150BFL5Z
Diameter/Pitch: 5/16"-18
Length Under Head: 1-1/2"
Grade: Grade 5
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 1/2"
Click Here for Tech Drawing

BoltsandNuts.com

5/16-18x1-1/2" Grade 5 Hex Flange Bolts Zinc Clear

SKU: 31C150BFL5Z

Product Description

Part Number: 31C150BFL5Z
Diameter/Pitch: 5/16"-18
Length Under Head: 1-1/2"
Grade: Grade 5
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Partial
Wrench Size: 1/2"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.79/pc

Popular

50

$0.58/pc

100

$0.50/pc

250

$0.40/pc

Best Value

800

$0.30/pc

$0.79

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	5/16-18
Grade Material	Grade 5
Partial Full Threads	Partial
Threads Per Inch	18 TPI
Proof Load	4,460 lbf
Tensile Strength	120,000 psi
Tensile Stress Area	0.0524 sq in
Torque Dry	17 ft-lb
Head Type	Hex Flange (Frame Bolt)

Length Under Head	1-1/2"
Finish	Zinc Clear
Coarse Fine Threads	Coarse
Wrench Size	1/2"
Clamp Load	3,340 lbf
Yield Strength	92,000 psi
Hardness	Rockwell C25–C34
Torque Lubricated	13 ft-lb
Nominal Size	5/16"

Grade	Grade 5
Material	Medium carbon steel, quenched and tempered
Thread Class	2A
Major Diameter	0.312"
Min Tensile Load	6,290 lbf
Proof Stress	85,000 psi
Head Marking	Three radial lines on head
Length	1-1/2"
Inch Metric	Inch
