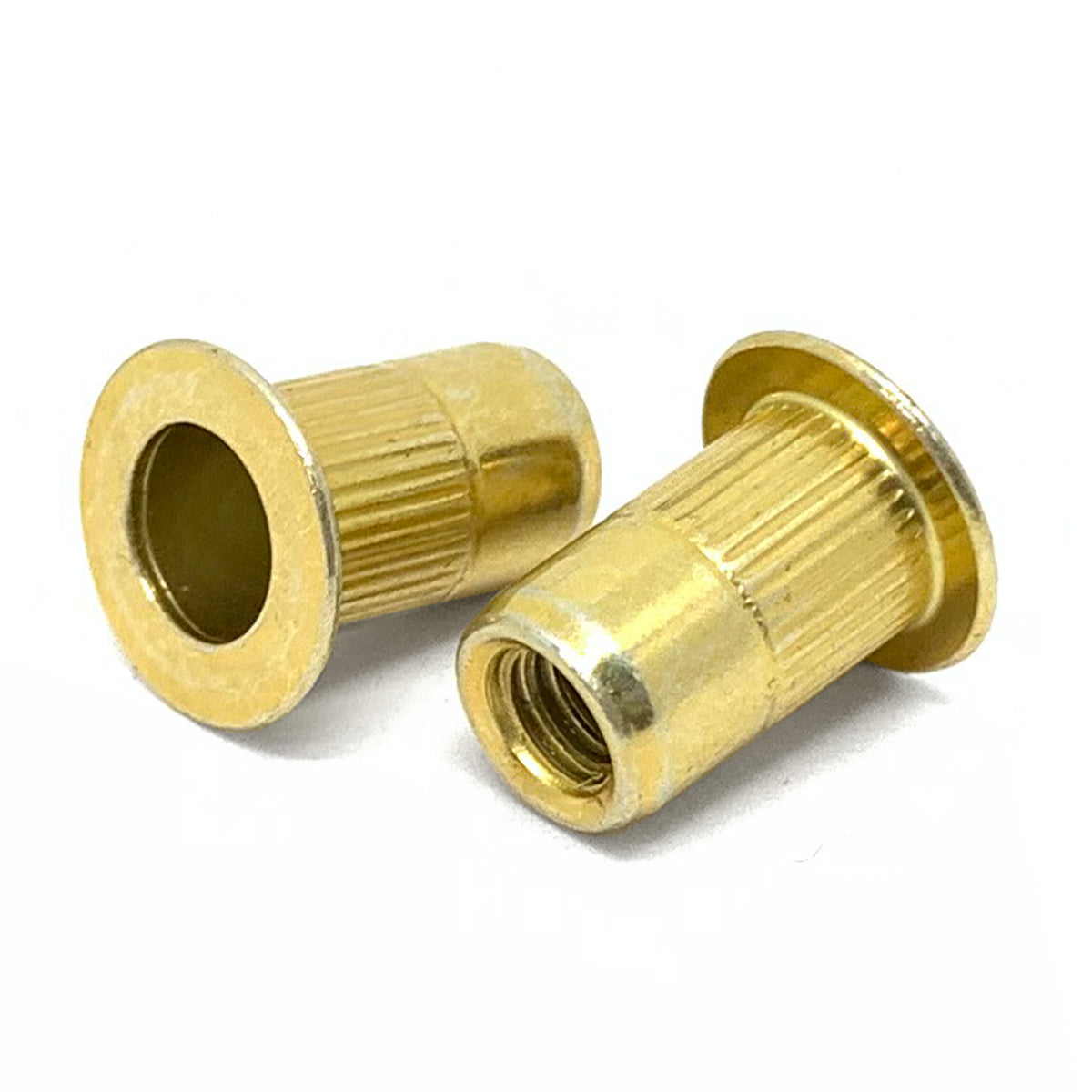

5/16-18 (.027-.150) Steel Large Flange Knurled Body Rivet Nut Zinc Yellow

Product Description

Part Number: 31CLFKRNSY
Diameter: 5/16"
Diameter/Pitch: 5/16"-18
Grade: Steel
Grip Range: .027-.150
Finish: Zinc Yellow
Recommended Predrill Hole Size: 17/32"

BoltsandNuts.com

5/16-18 (.027-.150) Steel Large Flange Knurled Body Rivet Nut Zinc Yellow

SKU: 31CLFKRNSY

Product Description

Part Number: 31CLFKRNSY
Diameter: 5/16"
Diameter/Pitch: 5/16"-18
Grade: Steel
Grip Range: .027-.150
Finish: Zinc Yellow
Recommended Predrill Hole Size: 17/32"

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.23/pc

Popular

50

$0.92/pc

100

$0.78/pc

250

$0.62/pc

Best Value

1000

$0.47/pc

$1.23

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	5/16"-18
Finish	Zinc Yellow
Thread Class	2B
Width Across Corners	0.577" max
Tensile Stress Area	0.0524 sq in
Diameter	5/16"
Nominal Size	5/16"
Used For	Blind threaded insert for sheet metal, tube, panel

Grade	Steel
Material	Low carbon steel
Threads Per Inch	18 TPI
Head Height	17/64"
Hole Diameter	0.484"
Head Type	Large Flange, Knurled Body
Grip Range	.027-.150
Recommended Predrill Hole Size	17/32"

Grade Material	Steel
Coarse Fine Threads	Coarse
Width Across Flats	0.500" (1/2")
Major Diameter	0.3125"
Thread Size	5/16"-18
Point Type	Knurled Cup
Inch Metric	Inch
Rated Capacity Lbs	3,000 lbf min pull-out
