Product Description
Part Number: 4F62SHCSABO
Diameter/Pitch: #4-48
Length Under Head: 5/8"
Grade: Alloy Steel
Finish: Black Oxide
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Hex Key Size: 3/32"
Click Here for Tech Drawing
BoltsandNuts.com

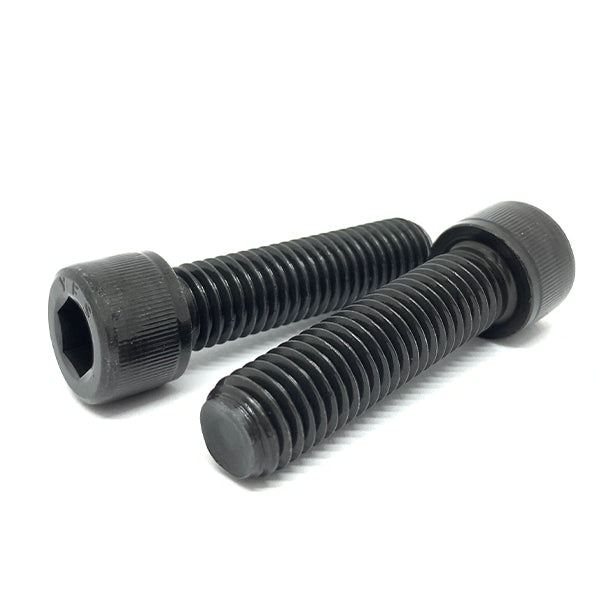

#4-48x5/8" Alloy Socket Head Cap Screws Black Oxide
Product Description
Part Number: 4F62SHCSABO
Diameter/Pitch: #4-48
Length Under Head: 5/8"
Grade: Alloy Steel
Finish: Black Oxide
Coarse / Fine Threads: Fine
Partial / Full Threads: Full
Hex Key Size: 3/32"
Click Here for Tech Drawing
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.24/pc
Popular
100
$0.18/pc
200
$0.15/pc
500
$0.12/pc
Best Value
2500
$0.09/pc
$0.24
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | #4-48 |
| Grade Material | Alloy Steel |
| Partial Full Threads | Full |
| Threads Per Inch | 48 TPI |
| Hex Key Size | 3/32" |
| Tensile Stress Area | 0.0066 sq in |
| Length | 5/8" |
| Nominal Size | #4 |
| Length Under Head | 5/8" |
| Finish | Black Oxide |
| Coarse Fine Threads | Fine |
| Head Height | 0.112" nom |
| Min Tensile Load | 1,190 lbf |
| Hardness | Rockwell C38–C43 |
| Head Type | Socket Head Cap |
| Inch Metric | Inch |
| Grade | Alloy Steel |
| Material | Alloy steel, heat treated (ASTM A574) |
| Thread Class | 3A |
| Major Diameter | 0.112" |
| Tensile Strength | 180,000 psi |
| Drive | Hex Socket |
| Head Diameter | 0.183" nom |
