Product Description
Part Number: 37SNTX8Y
Diameter: 3/8"
Grade: Grade 8
Finish: Zinc Yellow
Inside Diameter : 13/32" (Min 0.401", Max 0.421")
Outside Diameter: 13/16" (Min 0.805", Max 0.827")
Thickness : 0.110" - 0.126"
BoltsandNuts.com

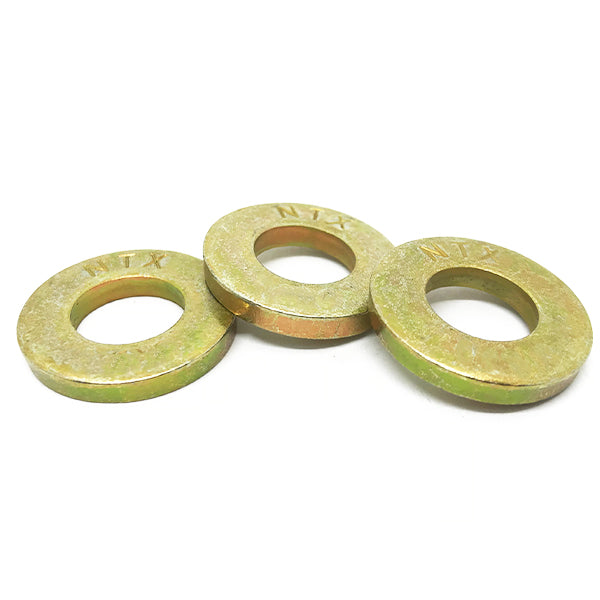

3/8" SAE Grade 8 Extra Thick Flat Washers Zinc Yellow
Product Description
Part Number: 37SNTX8Y
Diameter: 3/8"
Grade: Grade 8
Finish: Zinc Yellow
Inside Diameter : 13/32" (Min 0.401", Max 0.421")
Outside Diameter: 13/16" (Min 0.805", Max 0.827")
Thickness : 0.110" - 0.126"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.31/pc
Popular
100
$0.24/pc
200
$0.20/pc
500
$0.16/pc
Best Value
3100
$0.12/pc
$0.31
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Grade | Grade 8 Hardened |
| Hardness | Rockwell C33–C39 |
| Diameter | 3/8" |
| Inside Diameter | 0.406" nom |
| Material | Through-hardened steel |
| Specifications Met | ASME B18.22.1 |
| Thickness | 0.065" nom |
| System | Inch |
| Finish | Zinc Yellow |
| Pattern | SAE (Narrow) series |
| Outside Diameter | 0.812" nom |
Technical Drawing
Not to scale · ASME B18.22.1 · See table for exact dimensions
Technical Dimensions
| Outside Diameter | 0.812" nom |
| Inside Diameter | 0.406" nom |
| Thickness | 0.065" nom |
| Fits Bolt Size | 3/8" |
| Series | SAE (Narrow) series |
| Material | Through-hardened steel |
Flat round washer that spreads bolt and nut bearing load over a wider area, protecting the joint material and reducing pull-through or marring.
Dimensions conform to ASME B18.22.1 and may vary within specified manufacturing tolerances.
