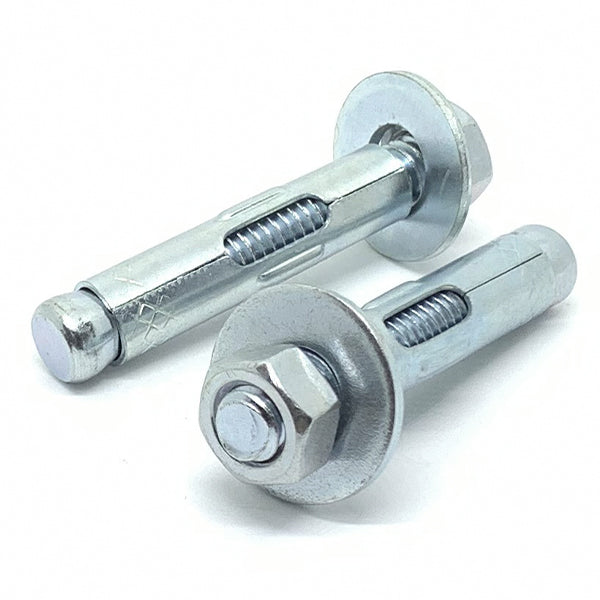

3/8-16x4" Sleeve Anchor w/ Hex Nuts & Washers Zinc Clear Steel

Product Description

Part Number: 37C400SAWN2Z
Bolt Diameter/Pitch: 3/8"-16
Length: 4"
Finish: Zinc Clear
Thread Series: Coarse (UNC)
Recommended Predrill Hole Size: 3/8"

BoltsandNuts.com

3/8-16x4" Sleeve Anchor w/ Hex Nuts & Washers Zinc Clear Steel

SKU: 37C400SAWN2Z

Product Description

Part Number: 37C400SAWN2Z
Bolt Diameter/Pitch: 3/8"-16
Length: 4"
Finish: Zinc Clear
Thread Series: Coarse (UNC)
Recommended Predrill Hole Size: 3/8"

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$2.50/pc

Popular

12

$1.87/pc

24

$1.59/pc

60

$1.27/pc

Best Value

250

$0.95/pc

$2.50

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Thread Size	3/8"-16
Finish	Zinc Clear
Thread Series	Coarse (UNC)
Thread Size	3/8"-16
Outside Diameter	0.812" nom
Bolt Diameter Pitch	3/8"-16

Length	4"
Head Type	Hex
Head Height	21/64"
Thickness	0.065" nom
Inside Diameter	0.406" nom

Material	Low carbon steel
Wrench Size	0.562" (9/16")
Thread Class	2B
Height	0.328" nom
Recommended Predrill Hole Size	3/8"

Technical Drawing

Not to scale · ICC-ES evaluated · See table for exact dimensions

Technical Dimensions

Anchor Diameter	0.3750"
Length	4"
Thread Size	3/8"-16
Material	Low carbon steel

Expansion anchor with a sleeve over a tapered stud. Tightening the nut draws the cone up, flaring the sleeve against the hole wall to grip. Works in concrete, block, and brick. Load values assume minimum embedment in sound base material; reduce for cracked concrete, edge distance, or close spacing.

Dimensions conform to ICC-ES evaluated and may vary within specified manufacturing tolerances.
