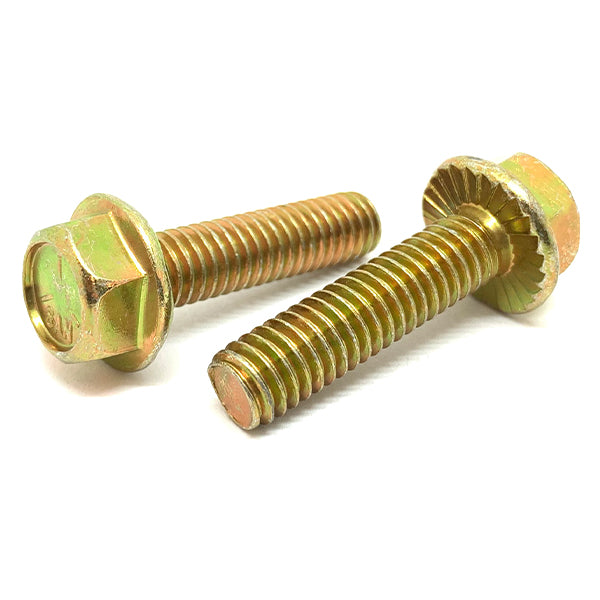

3/8-16x1" Grade 5 Serrated Hex Flange Bolts Zinc Yellow

Product Description

Part Number: 37C100SFS5Y
Diameter/Pitch: 3/8"-16
Length Under Head: 1"
Grade: Grade 5
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 9/16"
Click Here for Tech Drawing

BoltsandNuts.com

3/8-16x1" Grade 5 Serrated Hex Flange Bolts Zinc Yellow

SKU: 37C100SFS5Y

Product Description

Part Number: 37C100SFS5Y
Diameter/Pitch: 3/8"-16
Length Under Head: 1"
Grade: Grade 5
Finish: Zinc Yellow
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 9/16"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.81/pc

Popular

50

$0.60/pc

100

$0.51/pc

250

$0.41/pc

Best Value

700

$0.30/pc

$0.81

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	3/8-16
Grade Material	Grade 5
Partial Full Threads	Full
Threads Per Inch	16 TPI
Proof Load	6,590 lbf
Tensile Strength	120,000 psi
Tensile Stress Area	0.0775 sq in
Torque Dry	31 ft-lb
Head Type	Hex Flange (Frame Bolt)

Length Under Head	1"
Finish	Zinc Yellow
Coarse Fine Threads	Coarse
Wrench Size	9/16"
Clamp Load	4,940 lbf
Yield Strength	92,000 psi
Hardness	Rockwell C25–C34
Torque Lubricated	23 ft-lb
Nominal Size	3/8"

Grade	Grade 5
Material	Medium carbon steel, quenched and tempered
Thread Class	2A
Major Diameter	0.375"
Min Tensile Load	9,300 lbf
Proof Stress	85,000 psi
Head Marking	Three radial lines on head
Length	1"
Inch Metric	Inch
