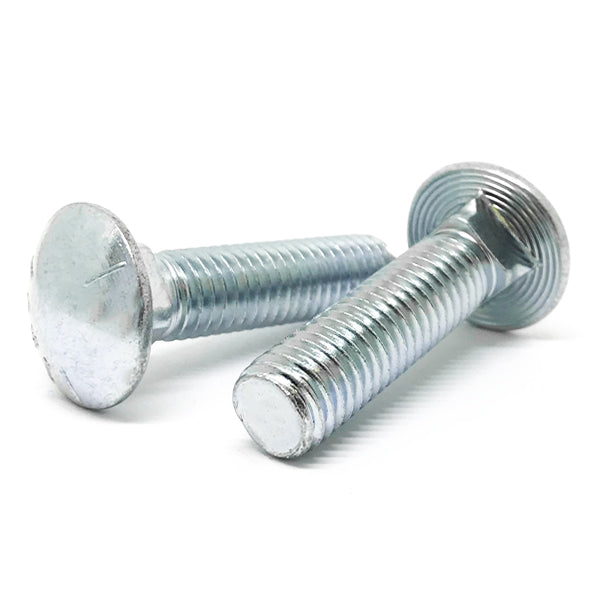

3/8-16x1-1/4" Grade 5 Round Head Square Neck Carriage Bolts Zinc

Product Description

Part Number: 37C125BCG5Z
Diameter/Pitch: 3/8"-16
Length Under Head: 1-1/4"
Grade: Grade 5
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Square Width (Max): 0.388"
Click Here for Tech Drawing

BoltsandNuts.com

3/8-16x1-1/4" Grade 5 Round Head Square Neck Carriage Bolts Zinc

SKU: 37C125BCG5Z

Product Description

Part Number: 37C125BCG5Z
Diameter/Pitch: 3/8"-16
Length Under Head: 1-1/4"
Grade: Grade 5
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Square Width (Max): 0.388"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.64/pc

Popular

50

$0.48/pc

100

$0.40/pc

250

$0.32/pc

Best Value

875

$0.24/pc

$0.64

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	3/8-16
Grade Material	Grade 5
Partial Full Threads	Full
Threads Per Inch	16 TPI
Clamp Load	4,940 lbf
Yield Strength	92,000 psi
Hardness	Rockwell C25–C34
Torque Lubricated	23 ft-lb
Head Type	Round Head, Square Neck

Length Under Head	1-1/4"
Finish	Zinc Clear
Coarse Fine Threads	Coarse
Major Diameter	0.375"
Min Tensile Load	9,300 lbf
Proof Stress	85,000 psi
Head Marking	Three radial lines on head
Square Width Max	0.375" nom (square neck)
Nominal Size	3/8"

Grade	Grade 5
Material	Medium carbon steel, quenched and tempered
Thread Class	2A
Proof Load	6,590 lbf
Tensile Strength	120,000 psi
Tensile Stress Area	0.0775 sq in
Torque Dry	31 ft-lb
Length	1-1/4"
Inch Metric	Inch
