Product Description
Part Number: 37C125BFL5Z
Diameter/Pitch: 3/8"-16
Grade: Grade 5
Length Under Head: 1-1/4"
Finish: Zinc Clear
Coarse/Fine Threads: Coarse
Partial/Full Threads: Full
Wrench Size: 9/16"
BoltsandNuts.com

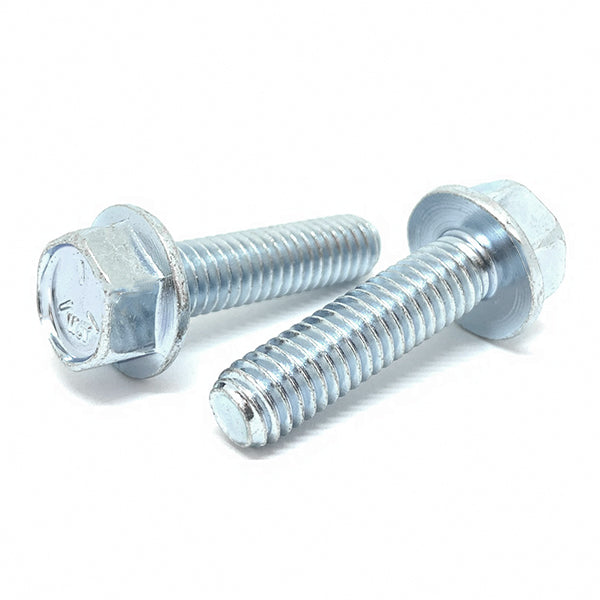

3/8-16x1-1/4" Grade 5 Hex Flange Bolts Zinc Clear
Product Description
Part Number: 37C125BFL5Z
Diameter/Pitch: 3/8"-16
Grade: Grade 5
Length Under Head: 1-1/4"
Finish: Zinc Clear
Coarse/Fine Threads: Coarse
Partial/Full Threads: Full
Wrench Size: 9/16"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.99/pc
Popular
50
$0.73/pc
100
$0.62/pc
250
$0.50/pc
Best Value
600
$0.37/pc
$0.99
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | 3/8-16 |
| Grade Material | Grade 5 |
| Partial Full Threads | Full |
| Threads Per Inch | 16 TPI |
| Proof Load | 6,590 lbf |
| Tensile Strength | 120,000 psi |
| Tensile Stress Area | 0.0775 sq in |
| Torque Dry | 31 ft-lb |
| Head Type | Hex Flange (Frame Bolt) |
| Diameter Pitch 1 | 3/8"-16 |
| Length Under Head | 1-1/4" |
| Finish | Zinc Clear |
| Coarse Fine Threads | Coarse |
| Wrench Size | 9/16" |
| Clamp Load | 4,940 lbf |
| Yield Strength | 92,000 psi |
| Hardness | Rockwell C25–C34 |
| Torque Lubricated | 23 ft-lb |
| Nominal Size | 3/8" |
| Grade | Grade 5 |
| Material | Medium carbon steel, quenched and tempered |
| Thread Class | 2A |
| Major Diameter | 0.375" |
| Min Tensile Load | 9,300 lbf |
| Proof Stress | 85,000 psi |
| Head Marking | Three radial lines on head |
| Length | 1-1/4" |
| Inch Metric | Inch |
