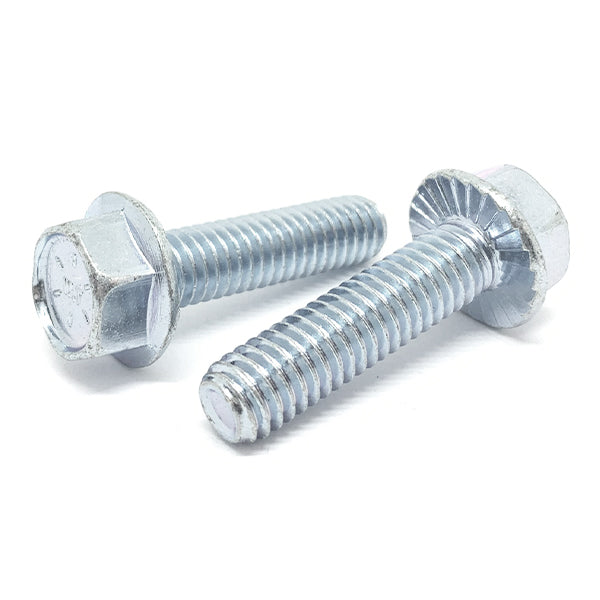

3/8-16x1-1/2" Grade 8 Serrated Hex Flange Bolts Zinc Clear

Product Description

Part Number: 37C150SFS8Z
Diameter/Pitch: 3/8"-16
Length Under Head: 1-1/2"
Grade: Grade 8
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 9/16"
Click Here for Tech Drawing

BoltsandNuts.com

3/8-16x1-1/2" Grade 8 Serrated Hex Flange Bolts Zinc Clear

SKU: 37C150SFS8Z

Product Description

Part Number: 37C150SFS8Z
Diameter/Pitch: 3/8"-16
Length Under Head: 1-1/2"
Grade: Grade 8
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 9/16"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$1.21/pc

Popular

50

$0.90/pc

100

$0.76/pc

250

$0.61/pc

Best Value

600

$0.46/pc

$1.21

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	3/8-16
Grade Material	Grade 8
Partial Full Threads	Full
Threads Per Inch	16 TPI
Proof Load	9,300 lbf
Tensile Strength	150,000 psi
Tensile Stress Area	0.0775 sq in
Torque Dry	44 ft-lb
Head Type	Hex Flange (Frame Bolt)

Length Under Head	1-1/2"
Finish	Zinc Clear
Coarse Fine Threads	Coarse
Wrench Size	9/16"
Clamp Load	6,970 lbf
Yield Strength	130,000 psi
Hardness	Rockwell C33–C39
Torque Lubricated	33 ft-lb
Nominal Size	3/8"

Grade	Grade 8
Material	Medium carbon alloy steel, quenched and tempered
Thread Class	2A
Major Diameter	0.375"
Min Tensile Load	11,620 lbf
Proof Stress	120,000 psi
Head Marking	Six radial lines on head
Length	1-1/2"
Inch Metric	Inch
