Product Description
Part Number: 75UNT8Y
Diameter: 3/4"
Grade: Grade 8
Finish: Zinc Yellow
Inside Diameter : 13/16" (Min 0.805", Max 0.842")
Outside Diameter: 2" (Min 1.993", Max 2.030")
Thickness : 0.122" - 0.177"
BoltsandNuts.com

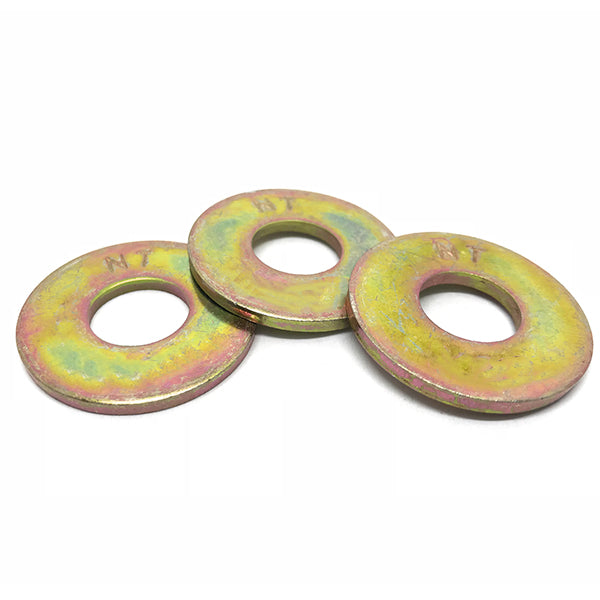

3/4" USS Grade 8 Flat Washers Zinc Yellow
Product Description
Part Number: 75UNT8Y
Diameter: 3/4"
Grade: Grade 8
Finish: Zinc Yellow
Inside Diameter : 13/16" (Min 0.805", Max 0.842")
Outside Diameter: 2" (Min 1.993", Max 2.030")
Thickness : 0.122" - 0.177"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$1.44/pc
Popular
25
$1.08/pc
50
$0.92/pc
125
$0.73/pc
Best Value
400
$0.55/pc
$1.44
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Grade | Grade 8 Hardened |
| Hardness | Rockwell C33–C39 |
| Diameter | 3/4" |
| Inside Diameter | 0.812" nom |
| Material | Through-hardened steel |
| Specifications Met | ASME B18.22.1 |
| Thickness | 0.148" nom |
| System | Inch |
| Finish | Zinc Yellow |
| Pattern | USS (Wide) series |
| Outside Diameter | 2.000" nom |
Technical Drawing
Not to scale · ASME B18.22.1 · See table for exact dimensions
Technical Dimensions
| Outside Diameter | 2.000" nom |
| Inside Diameter | 0.812" nom |
| Thickness | 0.148" nom |
| Fits Bolt Size | 3/4" |
| Series | USS (Wide) series |
| Material | Through-hardened steel |
Flat round washer that spreads bolt and nut bearing load over a wider area, protecting the joint material and reducing pull-through or marring.
Dimensions conform to ASME B18.22.1 and may vary within specified manufacturing tolerances.
