Product Description
Part Number: 75FNHF8P/FS
Diameter/Pitch: 3/4"-16
Grade: Grade 8
Finish: Phosphate & Oil
Thread Series: Fine (UNF)
Wrench Size: 1-1/8"
BoltsandNuts.com

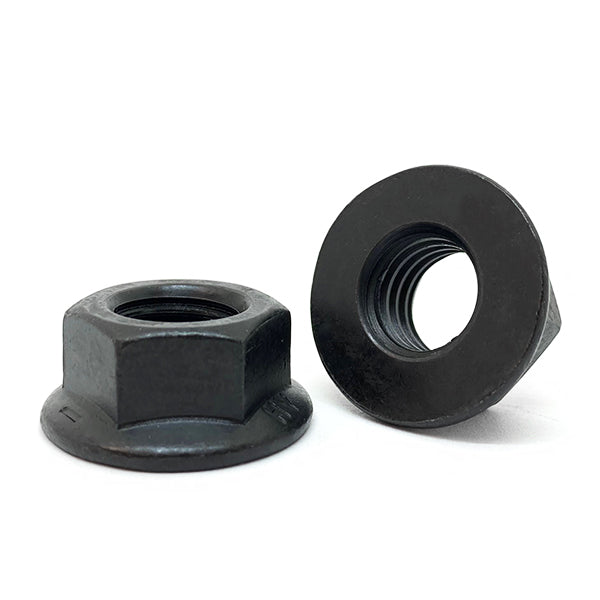

3/4"-16 Grade 8 Hex Flange Nuts Phos & Oil
Product Description
Part Number: 75FNHF8P/FS
Diameter/Pitch: 3/4"-16
Grade: Grade 8
Finish: Phosphate & Oil
Thread Series: Fine (UNF)
Wrench Size: 1-1/8"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
$3.15
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Thread Size | 3/4"-16 |
| Finish | Phosphate & Oil |
| Thread Series | Fine (UNF) |
| Proof Load (min) | 55,940 lbf |
| Grade | Grade 8 |
| Head Type | Hex Flange |
| Head Marking | J995 Grade 8 marking |
| Material | Medium carbon alloy steel, quenched and tempered |
| Wrench Size | 1-1/8" |
| Thread Class | 2B |
Technical Drawing
Not to scale · IFI-100/107 · See table for exact dimensions
Technical Dimensions
| Wrench Size | 1-1/8" |
| Thread Size | 3/4"-16 |
| Threads Per Inch | 16 TPI |
| Thread Class | 2B |
| Flange Style | Smooth Flange Nuts |
| Head Type | Hex Flange |
| Material | Medium carbon alloy steel, quenched and tempered |
Hex nut with an integral flange that spreads load like a built-in washer, often removing the need for a separate washer.
Dimensions conform to IFI-100/107 and may vary within specified manufacturing tolerances.
