Product Description
Part Number: 75C225BPL8PL
Diameter/Pitch: 3/4"-10
Length Under Head: 2-1/4"
Grade: Grade 8
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Square Width (Max): 0.765"
Click Here for Tech Drawing
BoltsandNuts.com

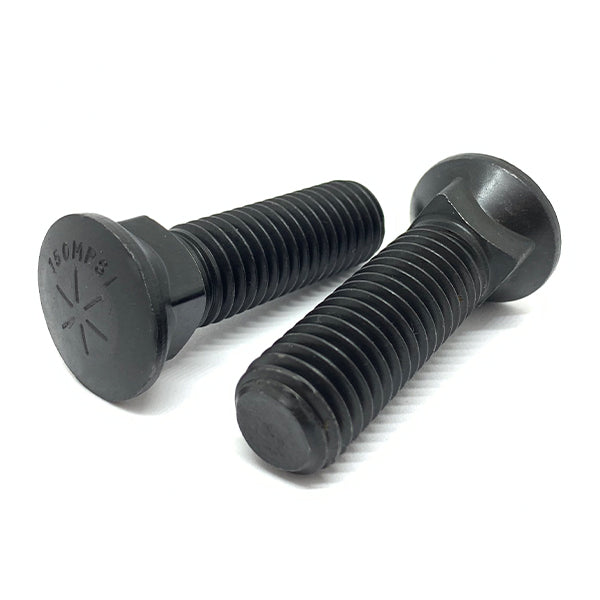

3/4-10x2-1/4" Grade 8 #3 Dome Head Plow Bolts Plain
Product Description
Part Number: 75C225BPL8PL
Diameter/Pitch: 3/4"-10
Length Under Head: 2-1/4"
Grade: Grade 8
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Square Width (Max): 0.765"
Click Here for Tech Drawing
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$5.54/pc
Popular
6
$4.15/pc
12
$3.52/pc
30
$2.82/pc
Best Value
140
$2.11/pc
$5.54
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | 3/4"-10 |
| Grade Material | Grade 8 |
| Partial Full Threads | Full |
| Major Diameter | 0.750" |
| Tensile Stress Area | 0.3345 sq in |
| Length Under Head | 2-1/4" |
| Finish | Plain |
| Thread Class | 2A |
| Min Tensile Load | 20,070 lbf |
| Head Type | Flat Countersunk, Square Neck |
| Grade | ASTM A307 Grade A |
| Material | Low carbon steel (ASTM A307 Grade A) |
| Threads Per Inch | 10 TPI |
| Tensile Strength | 60,000 psi |
| Inch Metric | Inch |
