Product Description
Part Number: 100SNTX8Y
Diameter: 1"
Grade: Grade 8
Finish: Zinc Yellow
Inside Diameter : 1-1/16" (Min 1.055", Max 1.092")
Outside Diameter: 2" (Min 1.993", Max 2.030")
Thickness : 0.235" - 0.235"
BoltsandNuts.com

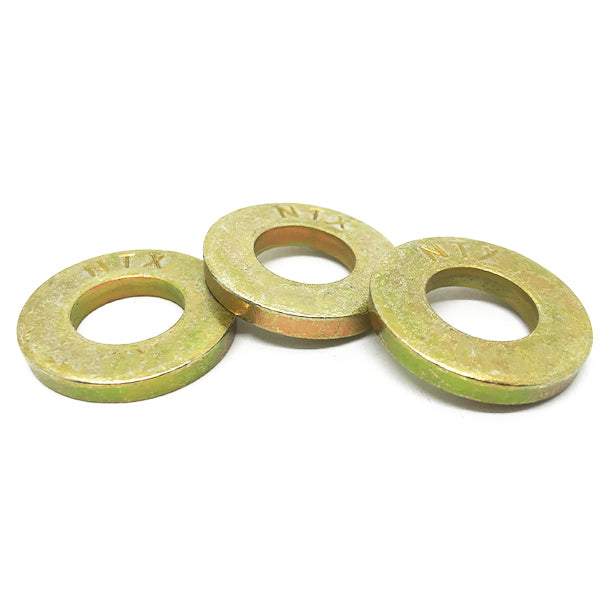

1" SAE Grade 8 Extra Thick Flat Washers Zinc Yellow
Product Description
Part Number: 100SNTX8Y
Diameter: 1"
Grade: Grade 8
Finish: Zinc Yellow
Inside Diameter : 1-1/16" (Min 1.055", Max 1.092")
Outside Diameter: 2" (Min 1.993", Max 2.030")
Thickness : 0.235" - 0.235"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$3.91/pc
Popular
15
$2.93/pc
30
$2.49/pc
75
$1.99/pc
Best Value
200
$1.49/pc
$3.91
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Grade | Grade 8 Hardened |
| Hardness | Rockwell C33–C39 |
| Diameter | 1" |
| Inside Diameter | 1.062" nom |
| Material | Through-hardened steel |
| Specifications Met | ASME B18.22.1 |
| Thickness | 0.134" nom |
| System | Inch |
| Finish | Zinc Yellow |
| Pattern | SAE (Narrow) series |
| Outside Diameter | 2.000" nom |
Technical Drawing
Not to scale · ASME B18.22.1 · See table for exact dimensions
Technical Dimensions
| Outside Diameter | 2.000" nom |
| Inside Diameter | 1.062" nom |
| Thickness | 0.134" nom |
| Fits Bolt Size | 1" |
| Series | SAE (Narrow) series |
| Material | Through-hardened steel |
Flat round washer that spreads bolt and nut bearing load over a wider area, protecting the joint material and reducing pull-through or marring.
Dimensions conform to ASME B18.22.1 and may vary within specified manufacturing tolerances.
