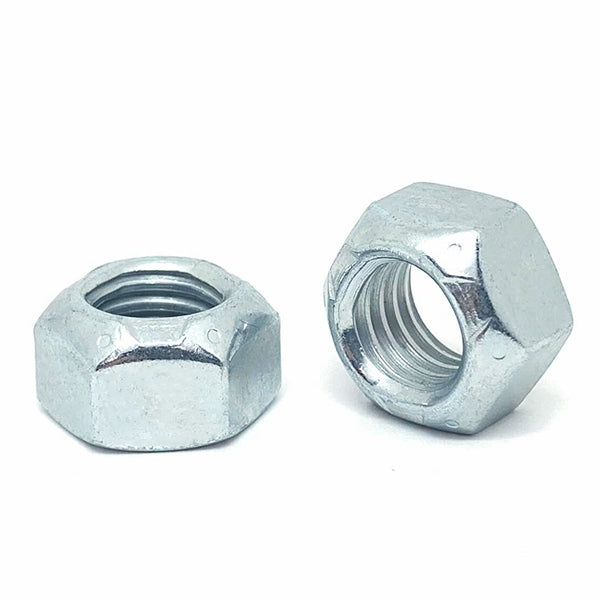

1"-8 Grade 8 Hex Prevailing Torque Top Lock Nuts Zinc

Product Description

Part Number: 100CPTNCZ
Diameter/Pitch: 1"-8
Grade: Grade 8
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Wrench Size: 1-1/2"
Click Here for Tech Drawing

BoltsandNuts.com

1"-8 Grade 8 Hex Prevailing Torque Top Lock Nuts Zinc

SKU: 100CPTNCZ

Product Description

Part Number: 100CPTNCZ
Diameter/Pitch: 1"-8
Grade: Grade 8
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Wrench Size: 1-1/2"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$4.27/pc

Popular

5

$3.20/pc

10

$2.72/pc

25

$2.17/pc

Best Value

100

$1.63/pc

$4.27

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	1"-8
Finish	Zinc Clear
Thread Class	2B
Width Across Flats	1.500" (1-1/2")
Major Diameter	1.0000"
Tensile Stress Area	0.6057 sq in
Lock Type	Top Lock Nuts
Locking Type	All-metal prevailing torque (distorted thread)
Break Away Torque	57 in-lb min (fifth removal)

Grade	Grade 8
Material	Medium carbon steel, heat treated
Threads Per Inch	8 TPI
Width Across Corners	1.732" max
Proof Load	90,860 lbf
Hardness	Rockwell C33–C39
Head Type	Hex
Inch Metric	Inch
Max Temperature	Rated to 450°F (all-metal)

Grade Material	Grade 8
Coarse Fine Threads	Coarse
Wrench Size	1-1/2"
Head Height	55/64"
Proof Stress	150,000 psi
Head Marking	J995 Grade 8 marking
Nominal Size	1"
Prevailing Torque	280 in-lb max (first installation)
