Product Description
Part Number: 25UNT2Z
Diameter: 1/4"
Grade: Low Carbon
Finish: Zinc Clear
Inside Diameter : 5/16" (Min 0.307", Max 0.327")
Outside Diameter: 47/64" (Min 0.727", Max 0.749")
Thickness : 0.051" - 0.080"
BoltsandNuts.com

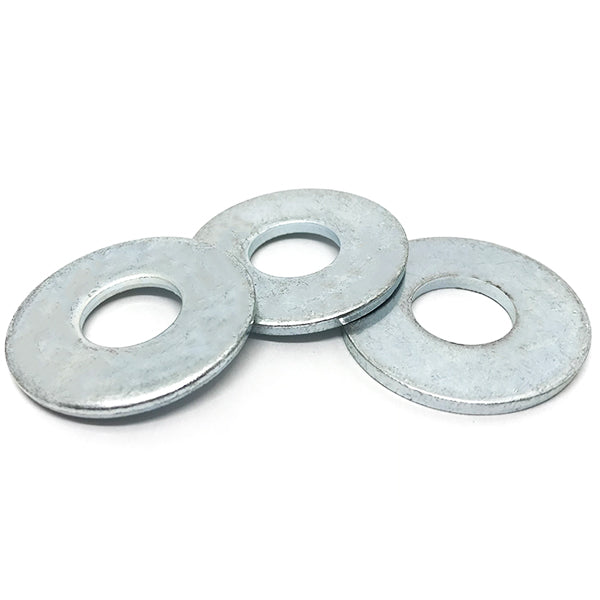

1/4" USS Low Carbon Flat Washers Zinc
Product Description
Part Number: 25UNT2Z
Diameter: 1/4"
Grade: Low Carbon
Finish: Zinc Clear
Inside Diameter : 5/16" (Min 0.307", Max 0.327")
Outside Diameter: 47/64" (Min 0.727", Max 0.749")
Thickness : 0.051" - 0.080"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.06/pc
Popular
200
$0.0452/pc
400
$0.0384/pc
1000
$0.0307/pc
Best Value
7700
$0.0231/pc
$0.06
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Grade | Low Carbon |
| Specifications Met | ASME B18.22.1 |
| Thickness | 0.065" nom |
| System | Inch |
| Material | Low carbon steel |
| Pattern | USS (Wide) series |
| Outside Diameter | 0.734" nom |
| Finish | Zinc Clear |
| Diameter | 1/4" |
| Inside Diameter | 0.312" nom |
Technical Drawing
Not to scale · ASME B18.22.1 · See table for exact dimensions
Technical Dimensions
| Outside Diameter | 0.734" nom |
| Inside Diameter | 0.312" nom |
| Thickness | 0.065" nom |
| Fits Bolt Size | 1/4" |
| Series | USS (Wide) series |
| Material | Low carbon steel |
Flat round washer that spreads bolt and nut bearing load over a wider area, protecting the joint material and reducing pull-through or marring.
Dimensions conform to ASME B18.22.1 and may vary within specified manufacturing tolerances.
