Product Description
Part Number: 25SFW2Z
Thickness: 0.051" - 0.080"
Outside Diameter: 11/16" (Min 0.681", Max 0.703")
Inside Diameter: 11/32" (Min 0.339", Max 0.359")
Diameter: 1/4"
Finish: Zinc Clear
Grade: Low Carbon
BoltsandNuts.com

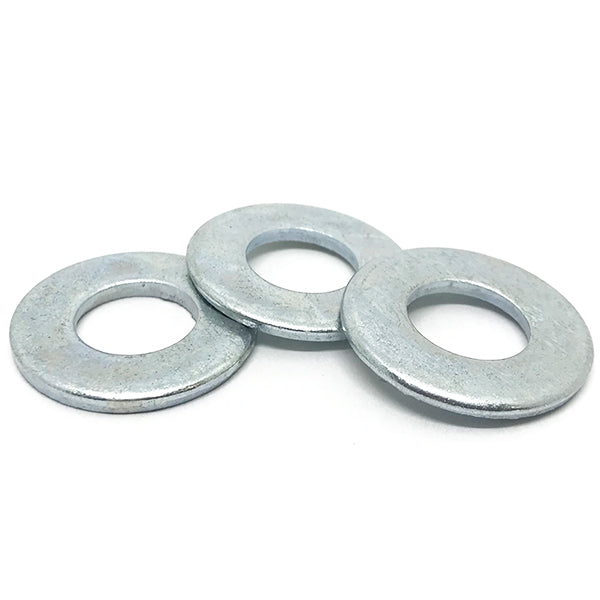

1/4" SAE Low Carbon Flat Washers Zinc
Product Description
Part Number: 25SFW2Z
Thickness: 0.051" - 0.080"
Outside Diameter: 11/16" (Min 0.681", Max 0.703")
Inside Diameter: 11/32" (Min 0.339", Max 0.359")
Diameter: 1/4"
Finish: Zinc Clear
Grade: Low Carbon
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.06/pc
Popular
200
$0.0425/pc
400
$0.0361/pc
1000
$0.0289/pc
Best Value
5000
$0.0217/pc
$0.06
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Grade | Low Carbon |
| Specifications Met | ASME B18.22.1 |
| Thickness | 0.065" nom |
| System | Inch |
| Material | Low carbon steel |
| Pattern | SAE (Narrow) series |
| Outside Diameter | 0.625" nom |
| Finish | Zinc Clear |
| Diameter | 1/4" |
| Inside Diameter | 0.281" nom |
Technical Drawing
Not to scale · ASME B18.22.1 · See table for exact dimensions
Technical Dimensions
| Outside Diameter | 0.625" nom |
| Inside Diameter | 0.281" nom |
| Thickness | 0.065" nom |
| Fits Bolt Size | 1/4" |
| Series | SAE (Narrow) series |
| Material | Low carbon steel |
Flat round washer that spreads bolt and nut bearing load over a wider area, protecting the joint material and reducing pull-through or marring.
Dimensions conform to ASME B18.22.1 and may vary within specified manufacturing tolerances.
