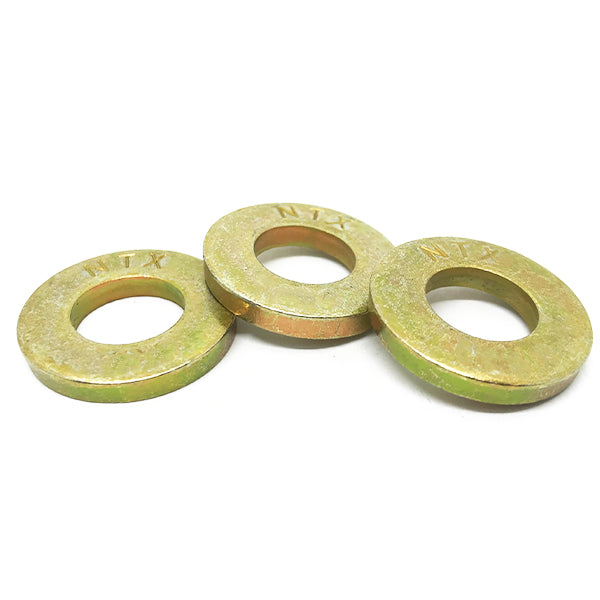

1/4" SAE Grade 8 Extra Thick Flat Washers Zinc Yellow
Product Description
Part Number: 25SNTX8Y
Diameter: 1/4"
Grade: Grade 8
Finish: Zinc Yellow
Inside Diameter : 9/32" (Min 0.276", Max 0.296")
Outside Diameter: 5/8" (Min 0.620", Max 0.640")
Thickness : 0.090" - 0.110"
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.18/pc
Popular
200
$0.14/pc
400
$0.12/pc
1000
$0.0933/pc
Best Value
5700
$0.07/pc
$0.18
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Grade | Grade 8 Hardened |
| Hardness | Rockwell C33–C39 |
| Diameter | 1/4" |
| Inside Diameter | 0.281" nom |
| Material | Through-hardened steel |
| Specifications Met | ASME B18.22.1 |
| Thickness | 0.065" nom |
| System | Inch |
| Finish | Zinc Yellow |
| Pattern | SAE (Narrow) series |
| Outside Diameter | 0.625" nom |
Technical Drawing
Not to scale · ASME B18.22.1 · See table for exact dimensions
Technical Dimensions
| Outside Diameter | 0.625" nom |
| Inside Diameter | 0.281" nom |
| Thickness | 0.065" nom |
| Fits Bolt Size | 1/4" |
| Series | SAE (Narrow) series |
| Material | Through-hardened steel |
Flat round washer that spreads bolt and nut bearing load over a wider area, protecting the joint material and reducing pull-through or marring.
Dimensions conform to ASME B18.22.1 and may vary within specified manufacturing tolerances.
