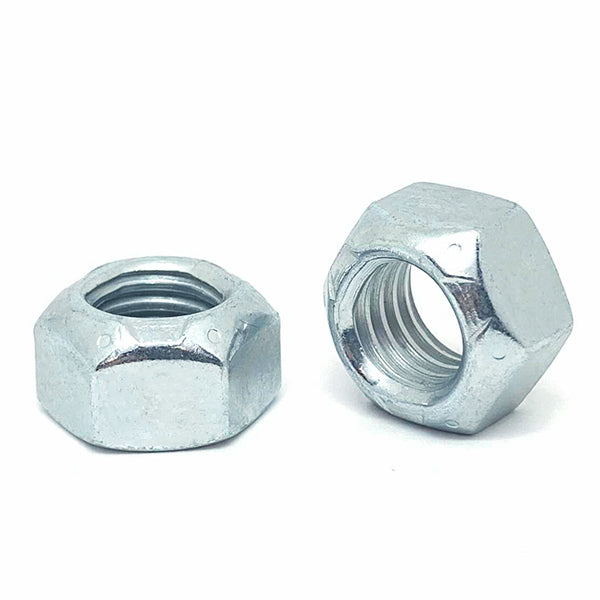

1/4"-28 Grade 8 Hex Prevailing Torque Top Lock Nuts Zinc

Product Description

Part Number: 25FPTNCZ
Diameter/Pitch: 1/4"-28
Grade: Grade 8
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Wrench Size: 7/16"
Click Here for Tech Drawing

BoltsandNuts.com

1/4"-28 Grade 8 Hex Prevailing Torque Top Lock Nuts Zinc

SKU: 25FPTNCZ

Product Description

Part Number: 25FPTNCZ
Diameter/Pitch: 1/4"-28
Grade: Grade 8
Finish: Zinc Clear
Coarse / Fine Threads: Fine
Wrench Size: 7/16"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.16/pc

Popular

200

$0.12/pc

400

$0.10/pc

1000

$0.08/pc

Best Value

4000

$0.06/pc

$0.16

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	1/4"-28
Finish	Zinc Clear
Threads Per Inch	28 TPI
Proof Load	5,460 lbf
Lock Type	Top Lock Nuts
Prevailing Torque	18 in-lb max (first installation)

Grade	Grade 8
Material	Medium carbon steel, heat treated
Width Across Flats	0.438" (7/16")
Proof Stress	150,000 psi
Locking Type	All-metal prevailing torque (distorted thread)
Break Away Torque	3.5 in-lb min (fifth removal)

Grade Material	Grade 8
Thread Class	2B
Width Across Corners	0.505" max
Tensile Stress Area	0.0364 sq in
Inch Metric	Inch
Max Temperature	Rated to 450°F (all-metal)
