Product Description
Part Number: 25C62BSHCSB
Material:Brass
Length:5/8"
Diameter/Pitch:1/4"-20
Partial/Full Thread:Fully Threaded
Coarse/Fine Thread:Coarse
Finish:Plain
BoltsandNuts.com

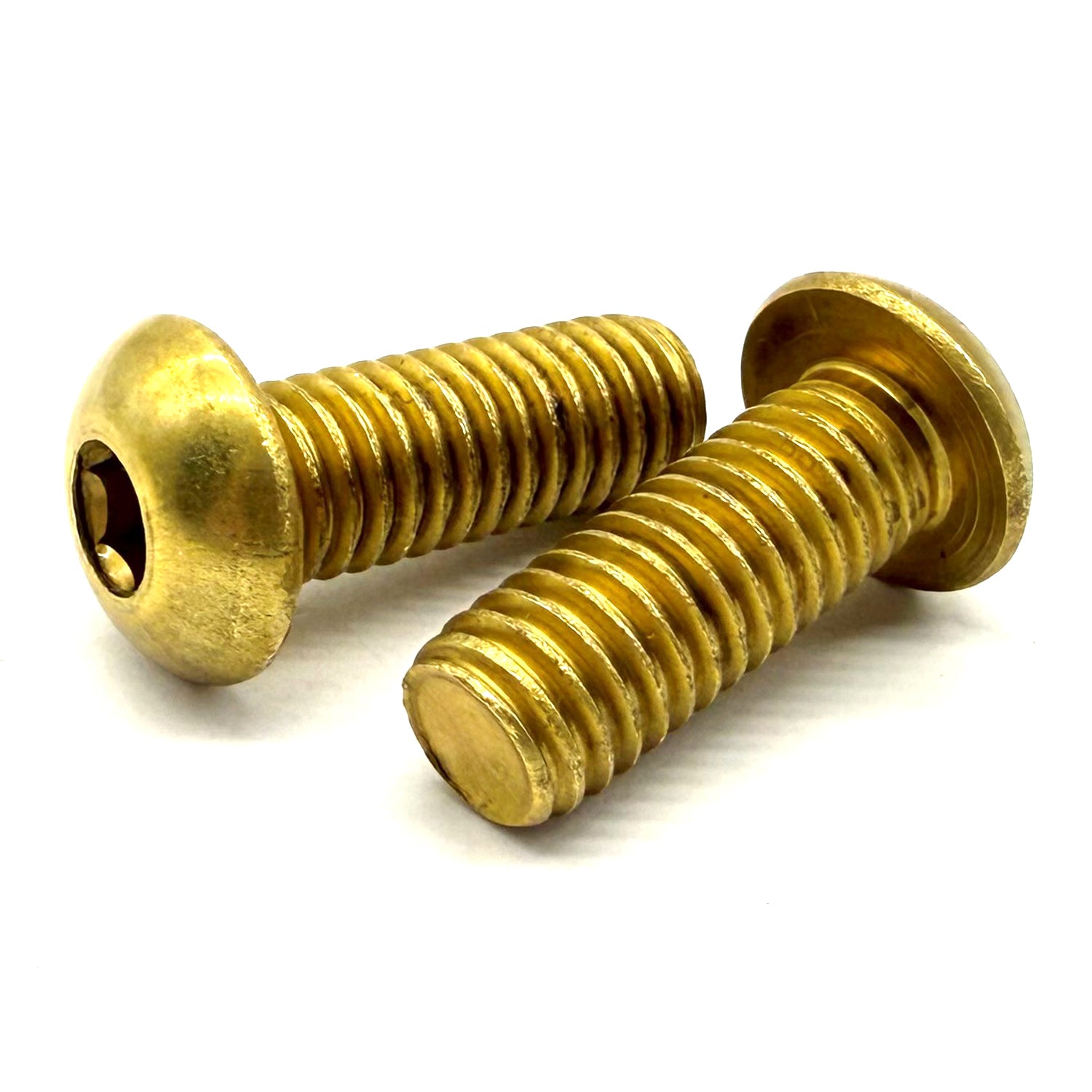

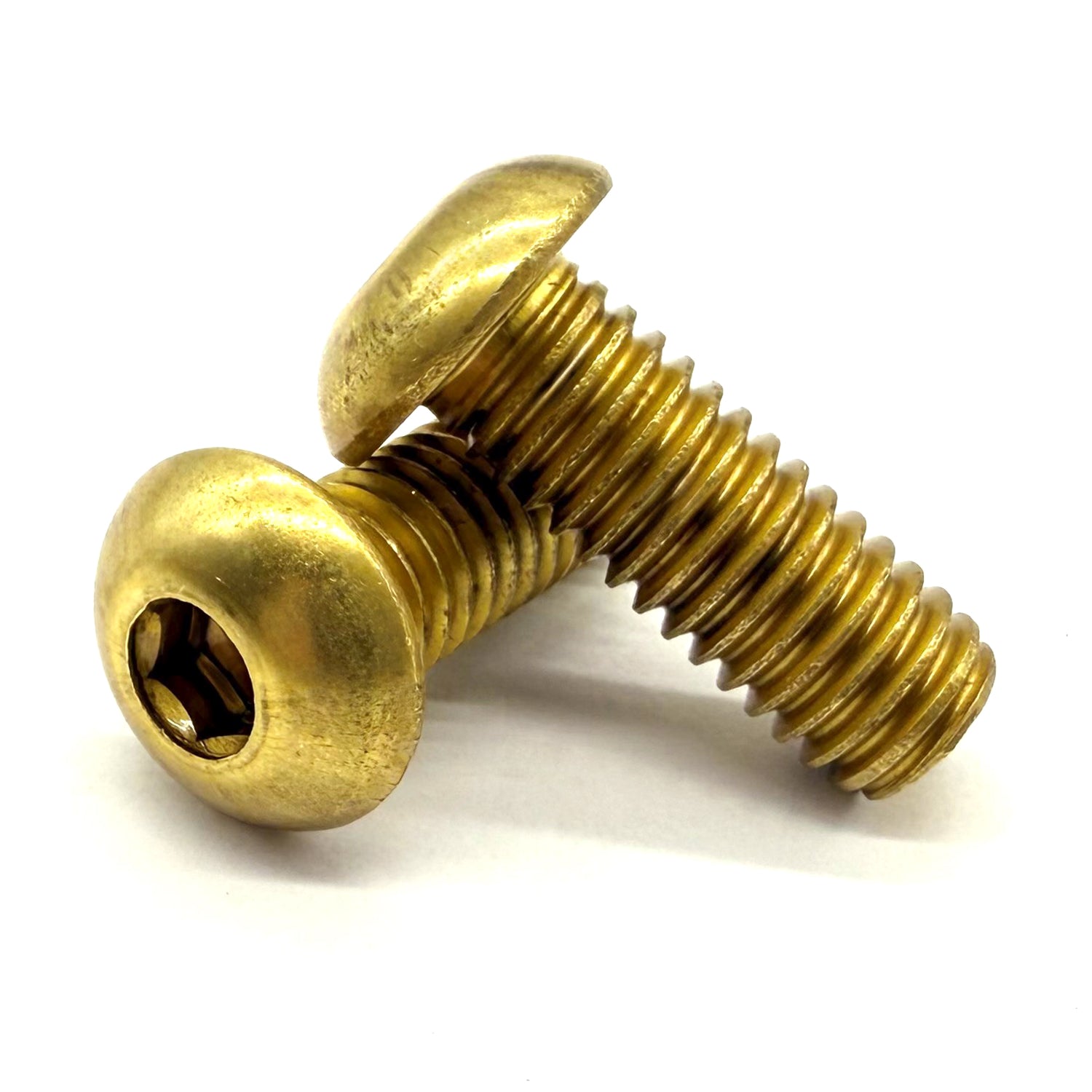

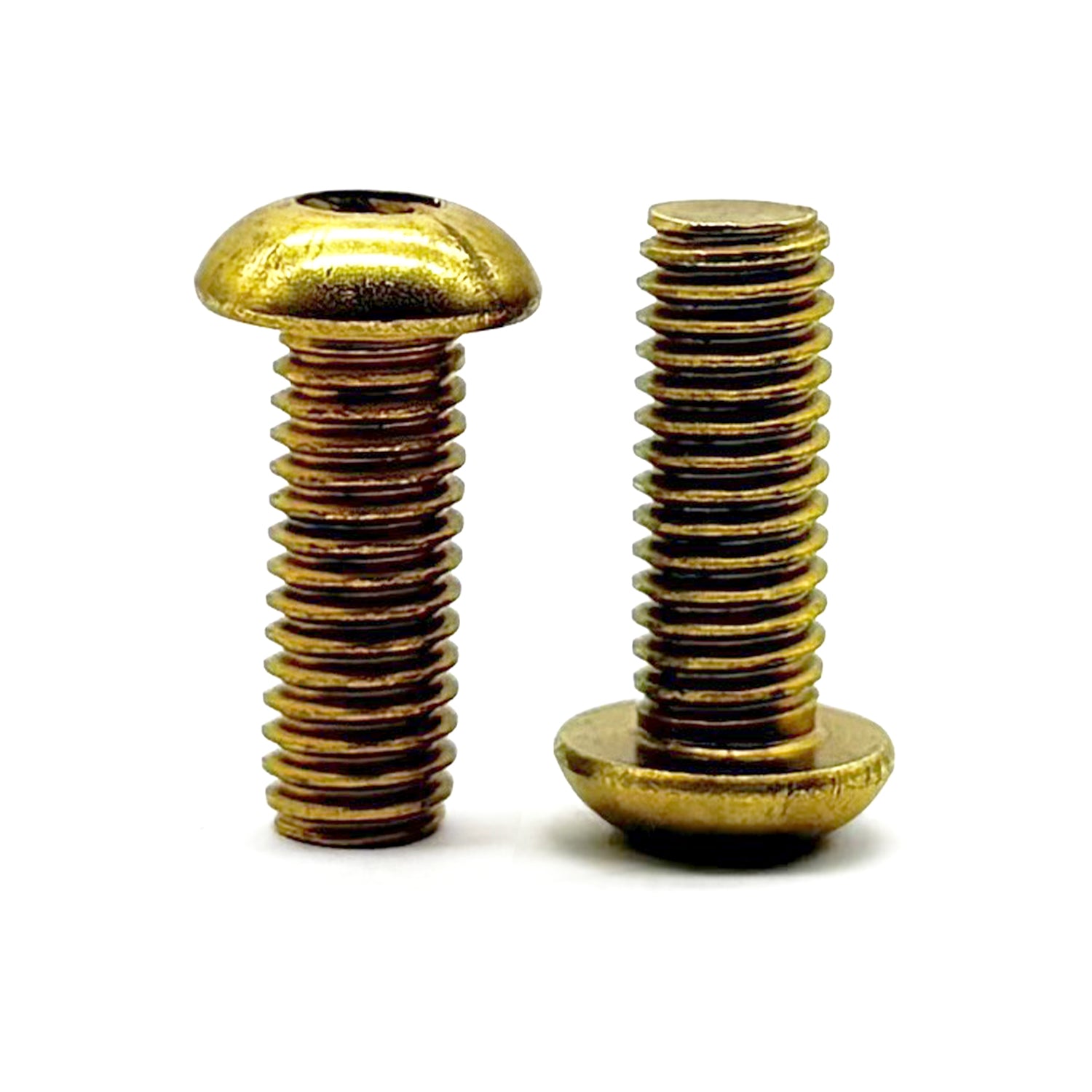

1/4"-20x5/8" Brass Button Head Socket Cap Screw
Product Description
Part Number: 25C62BSHCSB
Material:Brass
Length:5/8"
Diameter/Pitch:1/4"-20
Partial/Full Thread:Fully Threaded
Coarse/Fine Thread:Coarse
Finish:Plain
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.03/pc
$0.03
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Diameter Pitch | 1/4"-20 |
| Grade Material | Brass |
| Partial Full Threads | Fully Threaded |
| Threads Per Inch | 20 TPI |
| Hex Key Size | 5/32" |
| Tensile Stress Area | 0.0318 sq in |
| Head Type | Button Socket |
| Inch Metric | Inch |
| Length Under Head | 5/8" |
| Finish | Plain |
| Coarse Fine Threads | Coarse |
| Head Height | 0.132" max |
| Min Tensile Load | 4,610 lbf |
| Drive | Hex Socket |
| Head Diameter | 0.437" max |
| Grade | Alloy Steel |
| Material | Alloy steel, heat treated (ASTM F835) |
| Thread Class | 2A |
| Major Diameter | 0.250" |
| Tensile Strength | 145,000 psi |
| Length | 5/8" |
| Nominal Size | 1/4" |
