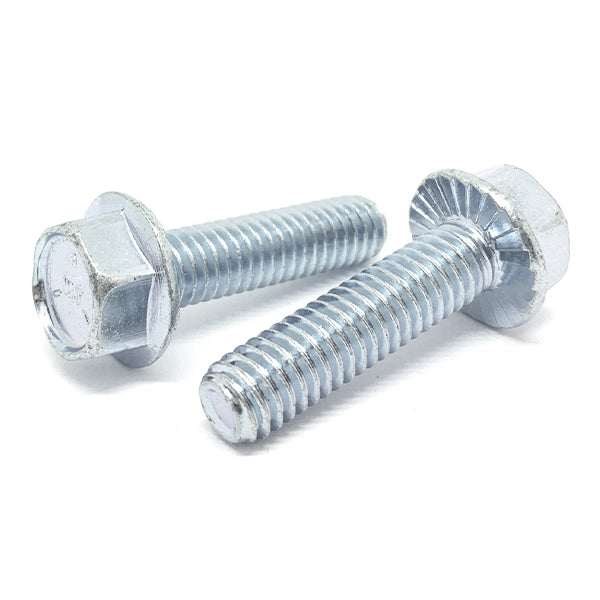

1/4-20x2-1/2" Grade 5 Serrated Hex Flange Bolts Zinc Clear

Product Description

Part Number: 25C250SFS5Z
Diameter/Pitch: 1/4"-20
Length Under Head: 2-1/2"
Grade: Grade 5
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 3/8"
Click Here for Tech Drawing

BoltsandNuts.com

1/4-20x2-1/2" Grade 5 Serrated Hex Flange Bolts Zinc Clear

SKU: 25C250SFS5Z

Product Description

Part Number: 25C250SFS5Z
Diameter/Pitch: 1/4"-20
Length Under Head: 2-1/2"
Grade: Grade 5
Finish: Zinc Clear
Coarse / Fine Threads: Coarse
Partial / Full Threads: Full
Wrench Size: 3/8"
Click Here for Tech Drawing

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.72/pc

Popular

50

$0.53/pc

100

$0.45/pc

250

$0.36/pc

Best Value

1100

$0.27/pc

$0.72

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	1/4-20
Grade Material	Grade 5
Partial Full Threads	Full
Threads Per Inch	20 TPI
Proof Load	2,700 lbf
Tensile Strength	120,000 psi
Tensile Stress Area	0.0318 sq in
Torque Dry	8 ft-lb
Head Type	Hex Flange (Frame Bolt)

Length Under Head	2-1/2"
Finish	Zinc Clear
Coarse Fine Threads	Coarse
Wrench Size	3/8"
Clamp Load	2,030 lbf
Yield Strength	92,000 psi
Hardness	Rockwell C25–C34
Torque Lubricated	6 ft-lb
Nominal Size	1/4"

Grade	Grade 5
Material	Medium carbon steel, quenched and tempered
Thread Class	2A
Major Diameter	0.250"
Min Tensile Load	3,820 lbf
Proof Stress	85,000 psi
Head Marking	Three radial lines on head
Length	2-1/2"
Inch Metric	Inch
