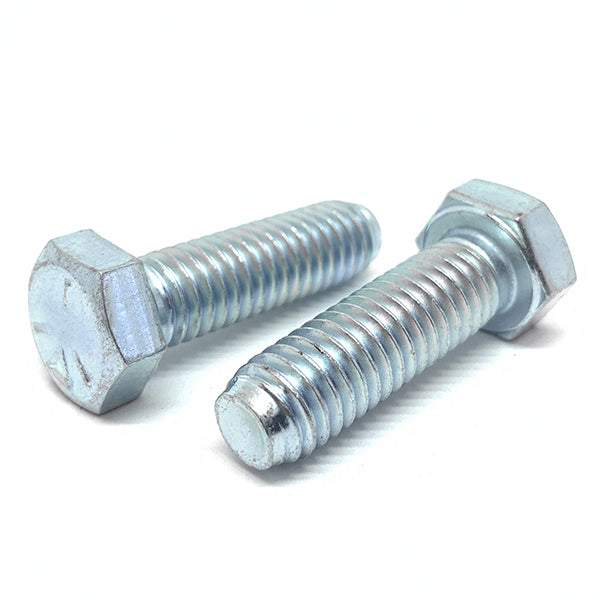

1/4-20x1" Hex Cap Screws Grade 5 Bolts Zinc Clear

Product Description

Part Number: 25C100HCS5Z
Diameter/Pitch: 1/4"-20
Grade: Grade 5
Length Under Head: 1"
Finish: Zinc Clear
Coarse/Fine Threads: Coarse
Partial/Full Threads: Full
Wrench Size: 7/16"

BoltsandNuts.com

1/4-20x1" Hex Cap Screws Grade 5 Bolts Zinc Clear

SKU: 25C100HCS5Z

Product Description

Part Number: 25C100HCS5Z
Diameter/Pitch: 1/4"-20
Grade: Grade 5
Length Under Head: 1"
Finish: Zinc Clear
Coarse/Fine Threads: Coarse
Partial/Full Threads: Full
Wrench Size: 7/16"

B&N Pro eligible item. Save 10% when you join Pro. Learn more.

Pack Size

1

$0.20/pc

Popular

100

$0.14/pc

200

$0.12/pc

500

$0.10/pc

Best Value

2200

$0.07/pc

$0.20

B&N Pro $0.00 Member Price

(Shipping $8.95) Add [amount] more for FREE SHIPPING

Free QR Storage Label Included with Most Items

Scan the QR and it will lead to that exact item for easy reordering!

30 Day Returns

Accepted on Most Items. Learn More

Diameter Pitch	1/4"-20
Partial Full Threads	Full
Width Across Flats	0.438" (7/16")
Major Diameter	0.250"
Min Tensile Load	3,820 lbf
Proof Stress	85,000 psi
Head Marking	Three radial lines on head
Thread Length	0.750" min

Length Under Head	1"
Thread Class	2A
Width Across Corners	0.505" max
Proof Load	2,700 lbf
Tensile Strength	120,000 psi
Tensile Stress Area	0.0318 sq in
Torque Dry	8 ft-lb
Diameter Pitch 1	1/4"-20

Grade	Grade 5
Threads Per Inch	20 TPI
Head Height	0.150" – 0.163"
Clamp Load	2,030 lbf
Yield Strength	92,000 psi
Hardness	Rockwell C25–C34
Torque Lubricated	6 ft-lb
