Product Description
Part Number: 14D125HWDSZ/3
Diameter: #14
Grade: Steel
Length Under Head: 1-1/4"
Finish: Zinc Clear
Wrench Size: 3/8"
Head Type: Unslotted Hex Washer
Point Type: Self Drilling
BoltsandNuts.com

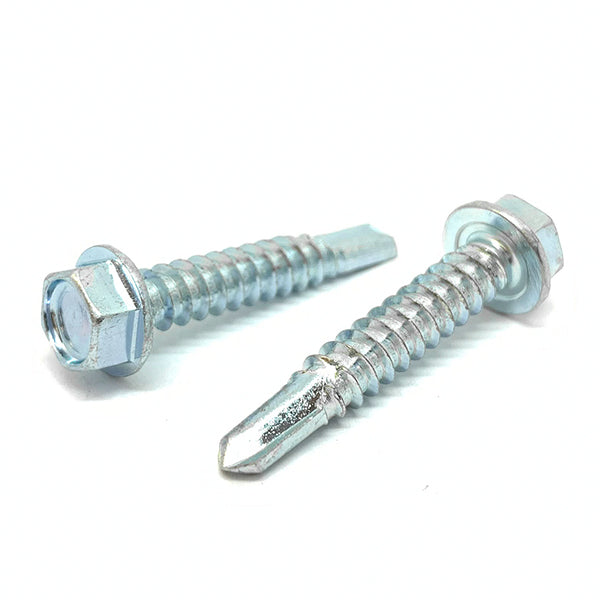

1/4-14x1-1/4" Unslotted Hex Washer Head #3 Point Self Drilling Screws Zinc
Product Description
Part Number: 14D125HWDSZ/3
Diameter: #14
Grade: Steel
Length Under Head: 1-1/4"
Finish: Zinc Clear
Wrench Size: 3/8"
Head Type: Unslotted Hex Washer
Point Type: Self Drilling
B&N Pro eligible item. Save 10% when you join Pro. Learn more.
Pack Size
1
$0.23/pc
Popular
100
$0.18/pc
200
$0.15/pc
500
$0.12/pc
Best Value
1700
$0.0893/pc
$0.23
B&N Pro
$0.00
Member Price
(Shipping $8.95) Add [amount] more for FREE SHIPPING
| Thread Size | 1/4"-14 |
| Material | Case hardened steel |
| Drive | Hex |
| Specifications Met | SAE J78 |
| Outside Diameter | 0.625" nom |
| Length | 1-1/4" |
| Finish | Zinc Clear |
| Wrench Size | 3/8" |
| Diameter | #14 |
| Inside Diameter | 0.281" nom |
| Grade | Steel |
| Head Type | Hex Washer Head |
| Point Type | #3 Point |
| Thickness | 0.065" nom |
Technical Drawing
Not to scale · See table for exact dimensions
Technical Dimensions
| Length Under Head | 1-1/4" |
| Major Thread Dia. | 0.2500" |
| Threads Per Inch | 14 TPI |
Self-drilling screw with a drill point that drills its own hole and then forms a mating thread in steel, in one step with no pilot hole. Use a drill point rated for the total material thickness.
